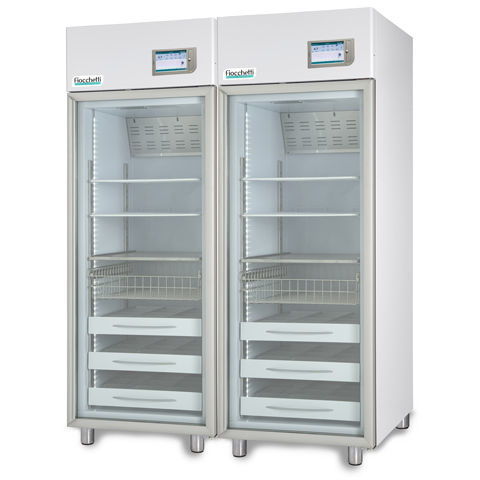

Pharmacy refrigerator MEDIKA 2T 1500 TOUCH

for vaccineshospitalblood bank

Product overview
Two-compartment, large-volume column refrigerator for medicines and vaccines with glass doors, positive temperature range, and integrated data recording. Designed for pharmacies, laboratories, hospitals and clinics.

Main identifiers
Code MED0702 (x2); Series: MEDIKA 2T® — two-compartment pharmacy refrigerator with double cooling units and two Touch displays with alarms and data recording.

Key features

• Two positive-temperature compartments (+2/+15°C) with independent double cooling units for storing medicines and vaccines at different set points.
• Tempered safety glass doors compliant with IEC 61010-1; anti-fog and low-emissivity glass with anodized aluminium profiles.
• Full-length ergonomic handle; magnetic gasket on all four sides; automatic return-spring lock and door stop at 90°.
• Full-height adjustable LED interior lighting.
• Professional ventilated refrigeration and automatic adaptive defrost with condensate evaporation.
• Power consumption reduction function: Night & Day.

Structure and refrigeration
Inner dimensions: 60 x 68 x 150 cm (per compartment). Nominal capacity: 700 + 700 L. Net capacity: 620 + 620 L. Insulation: injected PUF at 43 kg/m3, CFC-free. Insulation thickness: 75 mm (back). Monocoque structure with white plasticized atoxic steel interior/exterior with antibacterial film, or optional 18/10 AISI 304 stainless steel interior. Rounded inner corners. Four height-adjustable feet included.

Electronic controller
7" full touch-screen microprocessor controller, 0.1°C resolution, ±0.3°C accuracy. Standard functions: temperature and alarm recording, multi-trace real-time graph, current temperature and editable set-point, editable alarm limits, energy consumption display and optional battery status. Slots: SD card, USB port, SIM card slot (for optional GSM). Connectivity: integrated web server for LAN (RJ45) and MODBUS TCP/IP. Safety: anti-freeze and anti-overheating devices, dry contact for remote alarm. Acoustic and visual alarms, silenceable, with automatic recording.

Optional accessories (available on request)

• Gateway IOT
• Local monitoring system FIOCCHETTI LAN SUPERVISOR
• Power failure alarm kit
• External terminal board for ECT-F TOUCH
• Digital electric key (electronic lock)
• DMLP TOUCH digital monitor
• Temperature product simulation
• DIN 13277 conformity (for ECT-F TOUCH)
• GSM module
• Wi‑Fi module
• 4-20mA converter module
• Shelves, perforated stainless steel shelves, pull-out aluminum drawers with/without dividers, extractable stainless steel wire drawers, plexiglass fronts, stainless steel wire racks and baskets, lockable drawer for narcotics, wheels kit, internal power socket, access/port holes, humidity and PT100 probes, alternate power supplies and voltage stabiliser, wooden crate packaging

Technical data (selected)

• Refrigerant: R290
• Energy consumption: 1+1 kWh/24h
• Power absorption/current: kW 0.12 + 0.12 / A 0.7 + 0.7
• Inrush current: A 2.5 + 2.5
• Noise level: <50 dBA
• Heat rejection EN 12900: W 40 + 40
• Max shelves: 7 + 7 (wire shelves 56 x 65 cm)
• Max drawers: 14 + 14
• Inner drawer dimensions with dividers (per compartment): 15 x 50 x 7.5 cm (3)
• Inner stainless wire drawer dimensions (LxPxH): 53.5 x 60.5 x 14.8 cm

Applications
Designed for pharmacies and vaccine storage, blood and plasma banks, hospitals, laboratories, private clinics, mortuary refrigeration, lifescience and industry, and refrigerated transport.

Characteristics / technical specifications

• Model: MEDIKA 2T 1500 TOUCH
• Series: MEDIKA 2T® (double compartment, double cooling)
• Temperature range: +2/+15°C | +2/+15°C
• Total capacity: 1240 L (nominal 700 + 700 L)
• External dimensions (WxDxH): 150 x 84.5 x 210 cm
• Net capacity: 620 + 620 L
• Insulation: PUF 43 kg/m3, 75 mm back
• Refrigerant: R290
• Controller: 7" full touch screen, data recording, LAN and MODBUS TCP/IP connectivity
• Defrost: automatic, adaptive
• Lighting: full LED inner, adjustable brightness
• Safety: anti-freeze, anti-overheating, acoustic/visual alarms, dry contact for remote alarm
• Accessories: SD/USB/SIM slots, optional GSM/Wi‑Fi, DMLP TOUCH, electronic lock, monitoring modules and internal fittings
