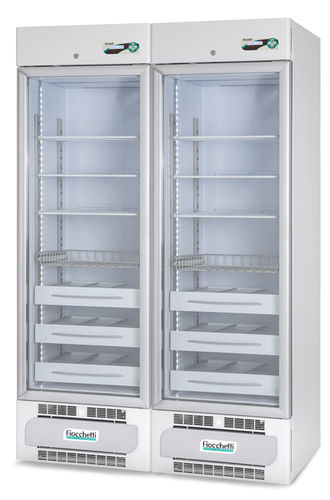

Pharmacy refrigerator MEDIKA 2T 800 ECT-F PLUS

for vaccinesfor hospitalsmedical

Overview
Model composed of two adjacent biological refrigerators of 400 L each, with two opposing tempered glass doors, two displays and positive temperature in both units, suitable for storage of medicines and vaccines in pharmacies and hospitals.

General description
The MEDIKA® series refrigerators for medicines and vaccines are designed with a clean, functional layout, tempered glass doors and adjustable compartments to optimize storage. They are intended for use in pharmacies, hospital wards, medical, aesthetic, dental and ophthalmic practices, laboratories and the pharmaceutical industry. The series meets applicable international standards and offers multiple capacities and internal configuration options.

Main specifications

• Temperature range: +2/+15°C | +2/+15°C
• Total capacity: 694 L (24.51 cu ft)
• Nominal capacity per compartment: 400 + 400 L (14.12 + 14.12 cu ft)
• External dimensions (W×D×H): 1200 × 66 × 196 cm
• Controller type: ECT-F PLUS

Structure and refrigeration

• Internal dimensions (per module): 50 × 48.5 × 140 cm (×2)
• Nominal capacity: 400 + 400 L
• Net capacity: 347 + 347 L
• Insulation: injected expanded polyurethane between walls with very high density (43 kg/m3), CFC-free, eco-friendly water injection
• Insulation thickness: 70 mm (rear) / 50 mm (sides)
• Structure: single-shell plastified white non-toxic steel internal/external with certified antibacterial treatment or optional internal stainless steel 18/10 AISI 304; rounded corners and basin-shaped bottom
• Mobility: 4 unidirectional rollers included and two front leveling feet
• Doors: 2 tempered glass doors compliant with IEC 61010-1, anti-condensation and low-emissivity with anodized aluminum profiles; full-length ergonomic handle; magnetic gasket on four sides; automatic closing with return spring and 90° door stay
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air ventilation
• Defrost type: automatic adaptive with condensate evaporation

ECT-F PLUS electronic controller

• Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages
• Keyboard: 4 membrane keys; configurable password for protection of power on/off and set-point changes
• Backup battery for alarm display during power loss up to 48 hours
• Minimum/maximum temperature memory and 16-event log resettable by the user
• Clean contact on the electronic board for remote alarm integration; display configurable in various readout modes
• Alarms: multiple alarm types including high temperature alarm due to power failure; alarms remain visible without mains power

Technical characteristics / specifications

• Refrigerant gas: R290
• Consumption: 0.7 + 0.7 kWh/24h
• Power absorbed / Current: kW 0.17 + 0.17 / A 1 + 1
• Starting current: A 3
• Noise level: <45 dBA
• Heat emission (EN 12900): W 30 + 30
• Max number of shelves: 7 + 7
• Shelf dimensions: 46 × 45 cm
• Max number of drawers: 14 + 14
• Internal drawer with dividers (W×D×H) (per compartment): 11 × 40 × 7.5 cm (3)
• Internal drawer without dividers (W×D×H): 39 × 40 × 7.5 cm
• Max wire drawers h=62 mm: 14 + 14
• Wire drawer internal size h=62 mm (W×D×H): 43.5 × 40.5 cm
• Certifiable materials: internal stainless steel 18/10 AISI 304 available as an option
