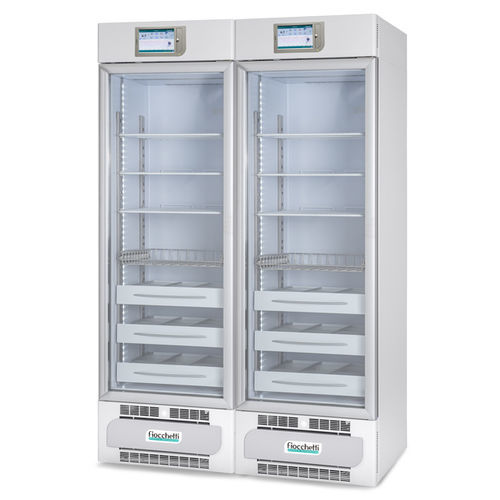

Pharmacy refrigerator MEDIKA 2T 800 TOUCH

for vaccineshospitallaboratory

Short description
Consisting of two completely independent biologic refrigerators, 400 l each, with two opposite glass doors, two touch displays and positive temperature setting in both compartments, with data recording, specific for drugs and vaccines, developed for pharmacies and hospitals.

Key information

• Temperature range: +2/+15°C | +2/+15°C
• Total capacity: 694 lt (24.51 cu ft)
• External dimensions (WxDxH): 1200 x 66 x 196 cm
• Electronic controller: TOUCH (7" full touch screen)

Structure and refrigeration

• Inner dimensions: 50 x 48.5 x 140 cm (x 2)
• Nominal capacity: 400 + 400 lt (14.12 + 14.12 cu ft)
• Net capacity: 347 + 347 lt (12.26 + 12.26 cu ft)
• Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection
• Insulation thickness: 70 mm back / 50 mm sides
• Structure: Monocoque type, plasticized atoxic white steel interior/exterior coated with a special antibacterial-type film, or inner 18/10 Aisi 304 stainless steel; inner bottom rounded corners
• Mobility: Nr 4 unidirectional rollers included and nr 2 front feet for maximum stability
• Interior lighting: Full LED along entire inner chamber, adjustable brightness
• Refrigeration type: Professional ventilated
• Defrost: Automatic, adaptive, with vaporization of condensate water
• Power consumption reduction function: Night & Day

Doors and sealing

• Doors made of tempered glass according to safety norm IEC 61010-1
• Anti-fog and low emissivity glass for improved thermal performance, with anodized aluminium profiles
• All length ergonomic handle for safe grip
• Magnetic gasket sealing on all four sides
• Automatic lock with return spring and door stop at 90°

Controller (7" FULL TOUCH SCREEN)

• Microprocessor controller with FULL TOUCH SCREEN 7" interface displaying dynamic values with 0.1°C resolution and ±0.3°C accuracy
• Standard includes temperature and alarm recording with multi-trace real-time graph, current temperature and editable set-point and alarm limits
• Storage slots and ports: SD card for data history, USB port for system download and update, SIM card slot for GSM module (optional)
• Connectivity: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection
• Safety: anti-freeze and anti-overheating devices and dry contact for remote alarm signal
• Alarms: acoustic and visual, silenceable, with automatic recording
• Optional/additional accessories: electronic lock, acoustic & visual alarm for power failure, DMLP TOUCH module for independent recording, GSM and Wi‑Fi modules, external terminal board, local and cloud monitoring systems

Accessories available on request

• Gateway IOT
• Local monitoring system FIOCCHETTI LAN SUPERVISOR
• Power failure alarm kit
• External terminal board for ECT-F TOUCH
• Digital electric key
• DMLP TOUCH digital monitor
• Temperature product simulation
• DIN 13277 conformity (for ECT-F TOUCH)
• GSM module, WI-FI module, 4-20mA converter module
• Shelves, stainless steel shelves, perforated shelves, pull-out aluminium drawers (with/without dividers), plexiglass fronts, extractible stainless steel wire drawers
• Wheels kit, internal power socket, access ports, humidity sensor, PT100 probe, power supply variants, voltage stabiliser, wooden crate package

Documents available

• Sketch drawing (technical sketch)
• Technical sheet MEDIKA 2T 800 ECT-F TOUCH (technical data sheet)
• Brochure Serie MEDIKA 2T

Refrigerator technical data (highlights)

• Refrigerant gas type: R290
• Energy consumption: 0,7 + 0,7 kWh/24h
• Power absorption / current: kW 0,17 + 0,17 / Amp 1 + 1
• Inrush current: Amp 3
• Noise level: <45 dBA
• Heat rejection EN 12900: W 30+30
• Shelves max nr.: 7+7 (wire shelves dimensions: 46 x 45 cm)
• Drawers max nr.: 14+14 (inner dimensions with dividers (each compartment): 11 x 40 x 7.5 cm (3); without dividers: 39 x 40 x 7.5 cm)
• Stainless steel wire drawer h=62mm max nr.: 14+14 (inner dims: 43.5 x 40.5 cm)

Usage and application
Specific for storing drugs and vaccines in pharmacies and hospitals; series designed to provide two positive temperature settings for medicines, complying with international standards and official pharmacopoeia.

Characteristics / technical specifications

• Product: MEDIKA 2T 800 TOUCH — double independent refrigerators (2 x 400 L)
• Temperature range: +2 / +15 °C per compartment
• Total nominal capacity: 400 + 400 L — Net: 347 + 347 L
• External dims (WxDxH): 1200 x 66 x 196 cm
• Inner dims (each compartment): 50 x 48.5 x 140 cm
• Insulation: PUF 43 kg/m3; thickness 70 mm back / 50 mm sides
• Lighting: Full LED with adjustable brightness
• Controller: 7" full touch screen, data logging, SD/USB/SIM slots, LAN (RJ45), MODBUS TCP/IP
• Refrigerant: R290
• Energy consumption: 0.7 + 0.7 kWh/24h; Power absorption: 0.17 + 0.17 kW
• Noise <45 dBA; Inrush current Amp 3
• Defrost: automatic adaptive with condensate vaporization
• Doors: tempered low‑emissivity anti‑fog glass; magnetic gasket; automatic lock; 90° door stop
• Compliance: designed to comply with applicable international standards and pharmacopoeia for drug and vaccine storage
