Humeral splint FIX-KG-22

waterproof

Short description

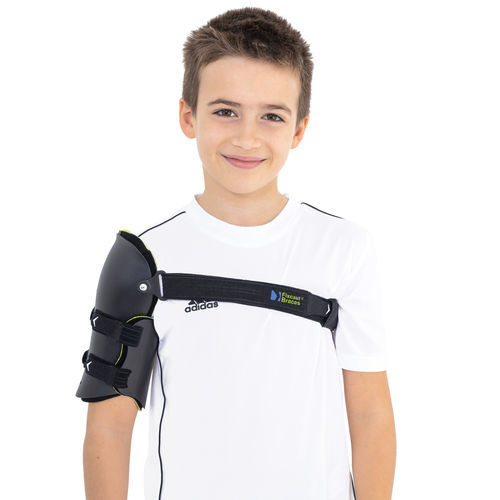

Pediatric shoulder humeral fracture brace FIX-KG-22 is an anatomically shaped, lightweight immobilizer designed for professional stabilization of humeral fractures in children. It provides secure immobilization while improving comfort and hygiene compared with traditional casting.

Features

• Shoulder humeral brace designed for paediatric use
• Class I medical device (CE)
• Cast replacement option
• Ambidextrous design (right/left)
• Full range of adjustment with wide chest strap
• Perforated shells for airflow
• Skin-friendly, easy-to-clean materials

Purpose of use

• Humeral fractures
• Injuries in the humeral region requiring immobilization

Humeral fracture (context)
A humerus fracture is a break of the upper-arm bone and can occur near the shoulder, at the shaft, or near the elbow. In children, these fractures are common after falls or high-activity incidents and require professional stabilization adapted to paediatric anatomy. FIX-KG-22 is developed specifically for immobilization of paediatric humeral injuries.

Product’s description
FIX-KG-22 consists of anatomically shaped shoulder and arm shells made of lightweight ABS (external and internal shells), inner soft fabrics and a circumferential chest strap. Arm shells are perforated to allow cooling airflow. The 3D orthopedic shell system includes swivel buckles and cut-outs for circumferential straps. Velcro fastening points allow attachment of soft pressure-relief cushions.

Materials and comfort systems
Internal shell surfaces are lined with Active3D™ thermoformed closed-cell fabric, which reduces pressure and abrasion, is waterproof, does not absorb sweat and is easy to clean. The chest strap is soft, adjustable and includes an armpit pressure-relief cushion made of SoftComfort™ foam with a perforated cover to improve ventilation. Materials comply with Oeko‑Tex and REACH standards.

Functional notes
FIX-KG-22 provides professional immobilization for humeral injuries, offers soft tissue compression while preventing distal migration, and serves as a lighter, more hygienic alternative to traditional plaster casts for children. Velcro closures enable safe, quick fitting. The design allows use on either the right or left arm.

Available sizes (table)

• Size 1 — Arm circumference (A): 19–23 cm; Chest circumference at xiphoid (B): up to 85 cm
• Size 2 — Arm circumference (A): 23–32 cm; Chest circumference at xiphoid (B): up to 95 cm
• Universal product for right and left arm

Downloads (documents available)

• Declaration of Conformity EC (PDF)
• Setting up (PDF manual)
• User manual (PDF)

Characteristics / Technical specifications

• Code / Model: FIX-KG-22
• Trade name: UPPER-EXTREMITY SUPPORT
• Indication: paediatric humeral fractures and injuries requiring immobilization
• Construction: anatomically shaped 3D ABS shoulder and arm shells (external + internal)
• Inner lining: Active3D™ thermoformed closed-cell fabric (waterproof, breathable, easy to clean)
• Pressure relief: SoftComfort™ cushions for armpit and delicate contact areas
• Adjustment: circumferential chest strap with wide range of adjustment; Velcro closures; swivel buckles
• Features: perforated shells for airflow; skin-friendly materials; ambidextrous design
• Medical classification: Class I medical device (CE)
