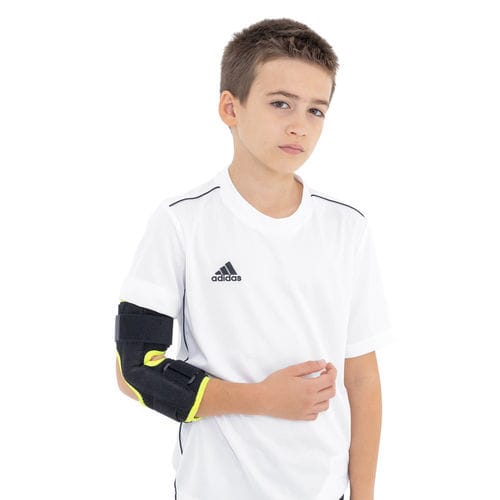

Orthopedic elbow support FIX-KG-17

arm surgerypediatricadjustable

Short description
PEDIATRIC ELBOW BRACE
Pediatric elbow brace FIX-KG-17 is a professional medical device designed to provide elbow compression, stabilization and controlled side immobilization while preserving flexion/extension.

Pulled elbow
Pulled elbow (annular ligament displacement) is a common minor injury in young children caused by a sudden pull or twist. The condition requires clinical assessment and often a simple reduction manoeuvre to reposition the radial head. After reduction, immobilization with a dedicated pediatric brace such as FIX-KG-17 is recommended to support healing and reduce recurrence.

Purpose of use

• elbow strain/sprain
• elbow dislocation
• elbow fracture (post-reduction support)
• elbow contusions
• elbow inflammation
• post-operative immobilization

Product's description
The brace is manufactured from skin-friendly, breathable AeroSpace II™ — a distance-elastic 3D knitted fabric with a two-layer structure combining polyester yarn for mechanical strength and spandex for flexibility. AeroSpace II™ features an external self-gripping layer for easy adjustment and a highly openwork structure for effective moisture evaporation and ventilation. The material provides therapeutic compression without overheating and reduces muscle vibrations during activity while remaining soft to the touch.
The device includes aluminum side splints that provide frontal plane immobilization while allowing physiological elbow flexion and extension. Fastening tapes use UniTape™ lamination with double-sided self-gripping function, buckles and Velcro for precise fitting and anti-slip stability. The brace delivers targeted stabilization, compression to support circulation and absorption of bruising, promoting recovery.

Available sizes
Size | Distance from lateral epicondyle to wrist (A) | Upper arm circumference (B) | Forearm circumference (C) | Typical age
1 | min 12 cm | 13–26 cm | 13–22 cm | 2–6 years
2 | min 15 cm | 16–30 cm | 14–26 cm | >5 years
Fits both left and right elbows.

Total length of the product
1: 19 cm
2: 23 cm

Downloads (documents available)
Declaration of conformity
Manual
Setting up (product guide)

Technical specifications

• Model: FIX-KG-17
• Type: Pediatric elbow brace
• Primary function: elbow compression and stabilization; side immobilization with preserved flexion/extension
• Material: AeroSpace II™ (distance-elastic 3D knitted fabric; breathable; two-layer knitted structure; polyester yarn and spandex)
• Fastening: UniTape™ fastening tapes with double-sided self-gripping function (buckles and Velcro)
• Splints: aluminum side splints (promote physiological ROM; frontal plane immobilization)
• Sizes: 1 (typical age 2–6 years), 2 (typical age >5 years); measurement ranges provided in Available sizes
• Total length: size 1 = 19 cm; size 2 = 23 cm
• Features: lightweight, breathable, therapeutic compression, reduces muscle vibrations, velvety softness
• Classification: Class I medical device (Regulation (EU) 2017/745)
