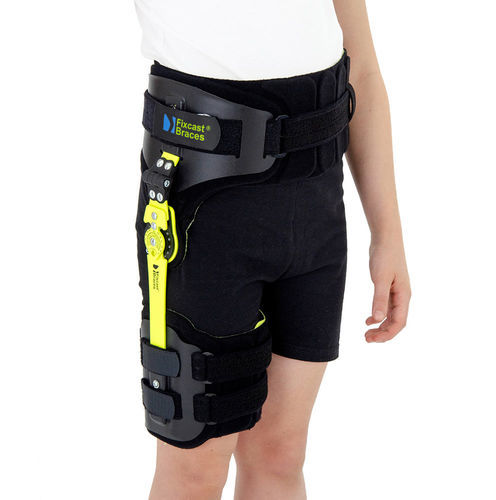

Positioning hip support FIX-KD-20

orthopedicfor hip surgerypediatric

Short description
Paediatric hip abduction brace FIX-KD-20 provides stabilization and controlled immobilization of the hip joint for children.

SPECIAL FEATURES

• Pediatric hip brace design
• Class I medical device
• Double-sided construction
• Full range of adjustment (height and width)
• Low-profile, lightweight components
• Active3D™ thermoformed padding (skin-friendly, waterproof)
• Universal use for either leg

Purpose of use

• Femoral fractures
• Pelvic avulsion fractures
• Acetabular labrum injury
• Hip muscle sprain/strain
• Hip inflammation
• Hip deformities
• Hip dislocation
• Perthes Disease (avascular necrosis)

Product’s description
The orthosis consists of two main parts — hip and thigh — covered with Active3D™ thermoformed, closed-cell fabric that reduces pressure and abrasion from splints and stays. Active3D™ is waterproof, does not absorb sweat, is easy to clean and features self-gripping layers for improved fit.

The hip component is semi-rigid anatomical ABS, thermoformable and trimmable to size. The semi-rigid thigh component includes height adjustment and simple fitting; thigh closures use durable rivet buckles. Both components are low-profile ABS with Active3D™ padding to limit pressure, improve ventilation and reduce skin lesion risk.

Both parts are connected by the anatomical JOINT FLEX CONTROL splint. The JOINT FLEX CONTROL hinge is a low-profile aluminum unit offering smooth flexion/extension adjustment and controls abduction/adduction in the 0–25° range. A drop lock adjusted with a hex key provides ROM lock positions at 0, 20, 45, 70, 90, 110 and 125 degrees; adjustment requires the hex key to prevent involuntary changes. The abduction/adduction hinge is ABS reinforced with carbon fibre.

Available sizes

• Size 1 — Waist circumference (A): 40–60 cm; Thigh circumference (B): 25–35 cm; Distance knee joint to groin (C): 20–25 cm; Typical age: 2–6 years
• Size 2 — Waist circumference (A): 45–75 cm; Thigh circumference (B): 30–50 cm; Distance knee joint to groin (C): 25–35 cm; Typical age: 5–12 years

Fits for both legs.
Total length: size 1 — min 36 cm / max 40 cm; size 2 — min 45 cm / max 50 cm.

Downloads (documents available)

• Declaration of Conformity EC
• Manual
• Setup (product manual)

Accessories

• Splint bending tool (accessory for splint shaping)

Technical specifications

• Code: FIX-KD-20
• Trade Name: LOWER-EXTREMITY SUPPORT
• Model: FIX-KD-20
• Medical device class: Class I (Regulation (EU) 2017/745)
• Components: Hip part (thermoformed ABS), Thigh part (semi-rigid ABS), JOINT FLEX CONTROL splint (aluminium hinge, ABS/carbon fibre abduction hinge)
• Padding / fabric: Active3D™ (thermoformed closed-cell, waterproof, skin-friendly, self-gripping layers)
• ROM (flexion/extension) lock positions: 0, 20, 45, 70, 90, 110, 125 degrees (adjusted with hex key)
• Abduction/adduction control range: 0–25 degrees
• Adjustments: height and width adjustments; thigh and hip fitting; rivet buckles for thigh
• Intended for: stabilization and immobilization after hip injuries, fractures, deformities, dislocations and specific paediatric hip pathologies
