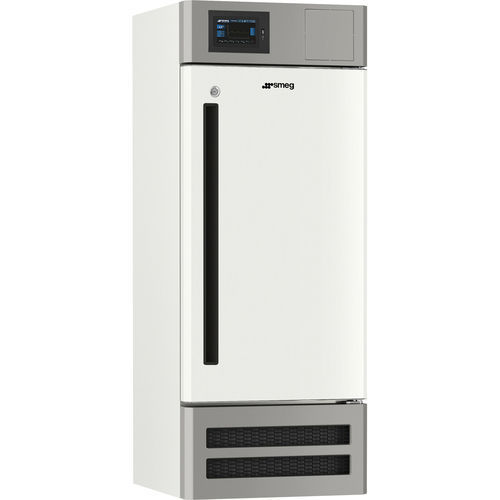

Pharmacy refrigerator FV20C1EVO

for laboratoryfor healthcare facilitieson casters

Overview
Laboratory refrigerator for Life Science and Health Care applications. Type: Professional refrigerator. Door: Solid. Capacity: 200 L. Temperature range: +2/+12 °C.

Intended use

• Solutions: Life Science; Health Care
• Life Science sector: Laboratory; Pharmaceutical
• Health Care sector: Care homes; Hospital pharmacy; Diagnostic laboratory

Main features

• Data logger: Yes
• Lock: Standard
• Side pass-through port: Optional
• Backup battery for alarm acquisition unit: Optional
• Clean contact for remote alarm: Standard
• Insulation thickness: 60 mm
• Evaporation: Forced air
• Refrigerant gas: R290
• CFC free: Yes
• Internal lighting: LED

Performance / Energy label

• Noise level: 45 dBA

Electrical connection

• Supply voltage: 230V, 50Hz
• Plug: (F;E) Schuko

Manuals and certifications

• Compliance with EN 13277 (ex DIN 58345): Yes, after installation of BTEVO and TERMDIN

Available versions

• 60 Hz version available

Interface and alarms

• Display: Touch screen, 7'' color LED, 800x480 resolution, real-time temperature graph
• WiFi connectivity: Yes, with real-time cloud connection
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visual alarm: Yes
• USB port: Yes

Construction

• Door: Solid
• Internal chamber material: Stainless steel with Scotch Brite finish
• External structure material: Hot-dip galvanized anti-corrosion sheet, coated with white PVC film
• Number of doors: 1
• Castors: 4
• Feet: 2
• Number of compressors: 1

Logistics information

• External dimensions: 60 x 60 x 156 cm

Included accessories

• Standard shelves: 3

Optional

• TERMDIN: Safety thermostat cut-off for compressor at +2 °C
• BTEVO: Backup battery - EVO series

Technical specifications

• Type: Professional refrigerator
• Door: Solid
• Capacity: 200 L
• Temperature range: +2/+12 °C
• Data logger: Yes
• Lock: Standard
• Side pass-through port: Optional
• Backup battery for alarm acquisition unit: Optional
• Clean contact for remote alarm: Standard
• Insulation thickness: 60 mm
• Evaporation: Forced air
• Refrigerant gas: R290
• CFC free: Yes
• Internal lighting: LED
• Noise level: 45 dBA
• Supply voltage: 230V, 50Hz
• Plug: (F;E) Schuko
• Compliance EN 13277 (ex DIN 58345): Yes, after installation of BTEVO and TERMDIN
• 60 Hz version: available
• Display: 7'' LED touch screen 800x480 with real-time graph
• WiFi connectivity: Yes (real-time cloud)
• Alarms: audible and visual; alarm indicator on display
• USB port: Yes
• Internal chamber material: Stainless steel Scotch Brite finish
• External structure material: Hot-dip galvanized sheet, white PVC film coating
• Number of doors: 1
• Castors: 4; Feet: 2; Compressors: 1
• External dimensions: 60 x 60 x 156 cm
• Standard shelves: 3
