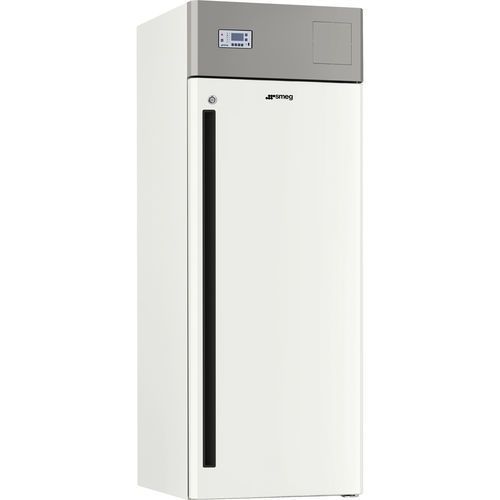

Hospital freezer C25V70C1A

laboratoryuprightvertical

Overview
The appliance can be fitted with stainless steel shelves or drawers, also available in a perforated version, and can be arranged in various custom combinations to suit laboratory and clinical workflows.

Premium materials
Smeg refrigerators and freezers provide controlled storage conditions thanks to durable materials. The internal chamber is stainless steel with a Scotch Brite finish and eco-friendly polyurethane insulation; the external structure is hot-dip galvanized steel coated with white PVC.

Full traceability
A high-precision datalogger records and stores temperature data and alarms for continuous monitoring. A USB port enables quick data download for compliance and record keeping.

Target

• Instruments: Life science; Health care
• Life Science sectors: Laboratory; Pharmaceutical; Petrochemical; Agro-food; Small laboratories
• Health Care sectors: CSSD; Nursing homes; Hospital pharmacy; Analysis laboratories

Features

• Type: Freezer
• Door: Solid
• Capacity: 700 L
• Temperature range: -10/-25 °C
• Datalogger: Yes (high-precision)
• Lock: Standard
• Lateral passing hole: Optional
• Battery backup for alarm control unit: Optional
• Free contact for remote alarm: Standard
• Insulation thickness: 60 mm (eco-friendly polyurethane)
• Evaporation: Ventilated
• Refrigerant gas: R290
• CFC free: Yes

Performance / Energy

• Noise level: 50 dBA

Electrical connection

• Voltage: 230 V, 50 Hz
• Plug: (F;E) Schuko

Manuals and Certifications

• Conformity to EN 13277 (ex DIN 58345): Not

Also available

• Available version: 60 Hz version

Interface

• Display: LCD
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visible alarm: Yes
• USB port: Yes

Construction

• Door: Solid
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel, coated with white PVC
• Doors quantity: 1
• Wheels: 4
• Feet: 2

Logistic information
External dimensions: 70 x 80 x 199 cm

Accessories included

• Standard shelves: 4

Technical specifications

• Model / Code: C25V70C1A
• Type: Freezer
• Door: Solid
• Capacity: 700 L
• Temperature range: -10/-25 °C
• Datalogger: Yes (records temperature and alarms)
• USB port for data download: Yes
• Lock: Standard
• Lateral passing hole: Optional
• Battery backup for alarm control unit: Optional
• Free contact for remote alarm: Standard
• Insulation thickness: 60 mm (eco-friendly polyurethane)
• Evaporation: Ventilated
• Refrigerant gas: R290
• CFC free: Yes
• Noise level: 50 dBA
• Voltage: 230 V, 50 Hz
• Plug: (F;E) Schuko
• Conformity to EN 13277 (ex DIN 58345): Not
• Available version: 60 Hz version
• Display: LCD; Alarm indicator on display: Yes; Audible alarm: Yes; Visible alarm: Yes
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel, coated with white PVC
• Doors: 1; Wheels: 4; Feet: 2
• External dimensions: 70 x 80 x 199 cm
• Accessories included: 4 standard shelves
