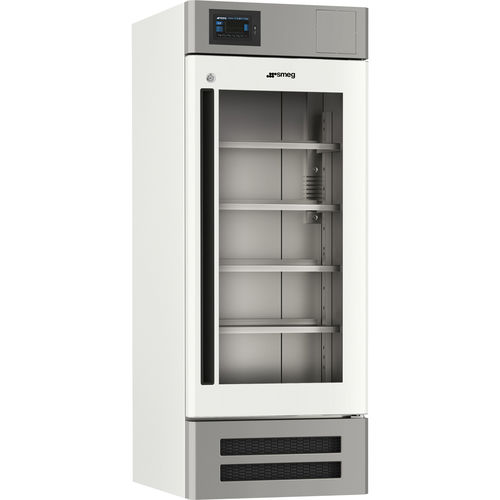

Hospital refrigerator FV45G1EVO

for clinical laboratorieslaboratoryfor pharmacies

Overview
Professional laboratory refrigerator designed for life science and healthcare applications. Suitable for laboratories, pharmaceutical environments, nursing homes, hospital pharmacies and analysis laboratories.

Main specifications

• Type: Professional refrigerator
• Door: Glass
• Capacity: 450 L
• Temperature range: +2/+12 °C

Target

• Instruments Solutions: Life science; Health care
• Life Science sector: Laboratory; Pharmaceutical
• Health Care sector: Nursing homes; Hospital pharmacy; Analysis laboratory

Technical Features

• Temperature range: +2/+12 °C
• Datalogger: Yes
• Capacity: 450 L
• Lock: Standard
• Lateral passing hole: Optional
• Battery backup for alarms electronic control unit: Optional
• Free contact for remote alarm: Standard
• Insulation thickness: 60 mm
• Evaporation: Ventilated
• Refrigerant gas: R290
• CFC free: Yes
• Internal lighting: LED

Performance / Energy Label
Noise level: 49 dBA

Electrical Connection
Voltage: 230V, 50Hz
Plug: (F;E) Schuko

Manuals and Certifications
Conformity to EN 13277 (ex DIN 58345): Yes, after installing BTEVO and TERMDIN

Also available
Available version: 60 Hz version

Interface

• Display: 7" LED touch screen, resolution 800x480, with real-time temperature graph
• WiFi connection: Yes, with real-time connection to the cloud
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visible alarm: Yes
• USB port: Yes

Construction

• Door: Glass
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel, non-corrosive and non-toxic, coated with white PVC
• Number of doors: 1
• Wheels: 4
• Feet: 2
• Number of compressors: 1

Logistic Information
External dimensions: 70 x 80 x 184 cm

Accessories included

• Standard shelves: 3

Optional accessories

• BTEVO — Backup battery (EVO series)
• TERMDIN — Safety thermostat (+2 °C) for DIN58345 compliance

Technical specifications

• Model: FV45G1EVO
• Brand: Smeg
• Type: Professional refrigerator
• Capacity: 450 L
• Temperature range: +2/+12 °C
• Refrigerant: R290
• Insulation thickness: 60 mm
• Noise level: 49 dBA
• Voltage: 230V, 50Hz
• Plug type: Schuko (F;E)
• Display: 7" LED touch, 800x480
• Connectivity: WiFi (real-time cloud connection)
• Data logger: Yes
• Alarms: visible and audible; remote free contact standard
• Internal light: LED
• Materials: Scotch Brite stainless steel chamber; hot galvanised steel external with white PVC coating
• External dimensions: 70 x 80 x 184 cm
• Doors: 1 (glass)
• Wheels/Feet: 4 wheels, 2 feet
• Compressors: 1
