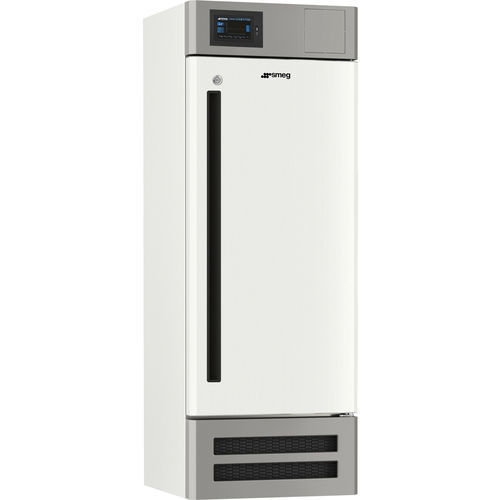

Healthcare facility freezer C30S25C1EVO

laboratoryuprighton casters

Presentation
The Smeg professional freezer model C30S25C1EVO is designed to provide controlled storage conditions for laboratory and healthcare applications. It features a stainless steel internal finish (Scotch Brite), eco‑friendly polyurethane insulation, digital controls and remote connectivity via Wi‑Fi to Smeg Cloud. The unit includes a 7-inch True Colour full-touch display with real-time temperature graph and integrated datalogger.

Key features

• Intuitive display: 7-inch True Colour full-touch graphic display, 800x480 resolution, real-time temperature graph for monitoring and adjustment.
• Complete traceability: precision datalogger for temperature and alarm recording; USB port for data export.
• Connectivity: standard Wi‑Fi connection to Smeg Cloud for remote storage, management and monitoring.
• Loading flexibility: configurable stainless steel shelves or drawers (including perforated options) in multiple combinations.
• Materials and build: stainless steel interior with Scotch Brite finish, eco-friendly polyurethane insulation, external galvanized sheet coated with white PVC film.

Accessories and options

• Standard equipment: 5 drawers included.
• Optional: backup battery (BTEVO), lateral pass-through port, backup battery for alarm acquisition controller.

Applications

• Instruments solutions: Life Science; Health Care.
• Life Science: laboratories, pharmaceutical production, petrochemical industry, food industry, small research labs.
• Health Care: sterilization centers, nursing homes, hospital pharmacy, clinical analysis laboratories.

Characteristics / technical specifications

• Model designation: C30S25C1EVO
• Type: Freezer
• Door: Solid
• Capacity: 250 L
• Temperature range: -10 / -32 °C
• Datalogger: Yes
• Lock: Standard
• Lateral pass-through port: Optional
• Backup battery for alarm acquisition controller: Optional
• Remote alarm contact (clean contact): Standard
• Insulation thickness: 80 mm
• Evaporation: Static
• Refrigerant gas: R290
• CFC Free: Yes
• Internal lighting: LED
• Noise level: 45 dBA
• Power supply: 230 V, 50 Hz
• Plug: (F;E) Schuko
• EN 13277 (ex DIN 58345) compliance: Yes, with installation of BTEVO and TERMDIN
• Available version: 60 Hz variant
• Display: 7" colour LED touch screen, 800x480 resolution, real-time temperature graph
• Wi‑Fi connectivity: Yes, real-time cloud connection
• Alarm indicator on display: Yes
• Acoustic alarm: Yes
• Visual alarm: Yes
• USB port: Yes
• Number of doors: 1
• Castors: 4
• Feet: 2
• Number of compressors: 1
• External dimensions: 60 x 60 x 174 cm
• Standard drawers: 5
• Optional mentioned: BTEVO (backup battery - EVO series)
