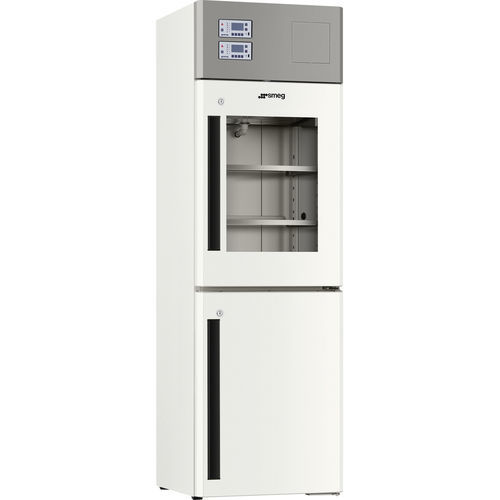

Pharmacy refrigerator DT70GA
for hospitalslaboratoryupright

Pharmacy refrigerator - DT70GA - SMEG Instruments - for hospitals / laboratory / upright
Pharmacy refrigerator - DT70GA - SMEG Instruments - for hospitals / laboratory / upright
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
laboratory, for pharmacies, for hospitals
Configuration
upright
Number of doors
2 doors
Door type
with glass door
Cooling system
with dual cooling system
Power source
electric
Other characteristics
with natural refrigerant, combination, internal freezer compartment, stainless steel, with independent circuits
Capacity

700 l
(184.92 gal)

Temperature range

Min.: -30 °C
(-22 °F)

Max.: 12 °C
(53.6 °F)

Width

70 cm
(27.6 in)

Depth

80 cm
(31 in)

Height

204 cm
(80.3 in)

Description

Overview
  • Type: Dual-temperature
  • Model: DT70GA
  • Capacity: 350/350 L
  • Door: Glass (refrigerator) / Solid (freezer)


Intended use
  • Instruments solutions: Life science; Health Care
  • Life science sector: Laboratory; Pharmaceutical; Petrochemical industry; Food industry; Small laboratories
  • Health Care sector: Sterilization units; Care homes; Hospital pharmacy; Diagnostic laboratory


Key technical features
  • Temperature range: +2/+12 °C (refrigerator compartment) / -10/-30 °C (freezer compartment)
  • Datalogger: Yes
  • Locks: 2, included as standard
  • Side through-pass port: Optional
  • Backup battery for alarm acquisition unit: Optional
  • Clean contact for remote alarm: Included as standard
  • Insulation thickness: 60 mm
  • Evaporation: Ventilated (fridge) / Static (freezer)
  • Refrigerant gas: R290
  • CFC free: Yes
  • Internal lighting: LED


Interface and alarms
  • Display: LCD
  • Alarm indicator on display: Yes
  • Audible alarm: Yes
  • Visual alarm: Yes
  • USB port: Yes


Construction
  • Door: Glass (refrigerator) / Solid (freezer)
  • Inner chamber material: Stainless steel with Scotch Brite finish
  • External structure material: Hot-dip galvanized sheet, anti-corrosion and non-toxic, coated with white PVC film
  • Number of doors: 2
  • Two separate compartments: Yes
  • Castors: 4
  • Feet: 2
  • Number of compressors: 2


Accessories included
  • Standard shelves: 2
  • Standard drawers: 3


Options
  • Side through-pass port
  • Backup battery for alarm acquisition unit
  • Compliance with EN 13277 (ex DIN 58345): Optional, refrigerator compartment only
  • Available versions: Double solid-door version; 60 Hz version


Performance / Energy label
  • Noise level: 50 dBA


Electrical connection
  • Supply voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko


Logistics information
  • External dimensions: 70 x 80 x 204 cm


Technical specifications
  • Model: DT70GA
  • Type: Dual-temperature
  • Capacity: 350 L (refrigerator) / 350 L (freezer)
  • Temperature range: +2/+12 °C (fridge) / -10/-30 °C (freezer)
  • Refrigerant gas: R290
  • CFC free: Yes
  • Evaporation: Ventilated (fridge) / Static (freezer)
  • Datalogger: Yes
  • Locks: 2 (included as standard)
  • Clean contact for remote alarm: Included as standard
  • Side through-pass port: Optional
  • Backup battery for alarm unit: Optional
  • Display: LCD
  • Alarms: audible and visual, alarm indicator on display
  • USB port: Yes
  • Inner material: Stainless steel (Scotch Brite finish)
  • External structure: Hot-dip galvanized sheet coated in white PVC
  • Number of compressors: 2
  • Two separate compartments: Yes
  • Castors/Feet: 4 castors, 2 feet
  • Shelves: 2 (included)
  • Drawers: 3 (included)
  • Noise level: 50 dBA
  • Voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko
  • External dimensions: 70 x 80 x 204 cm
