Healthcare facility refrigerator DTP30GA
for pharmaciesfor hospitalsfor laboratory

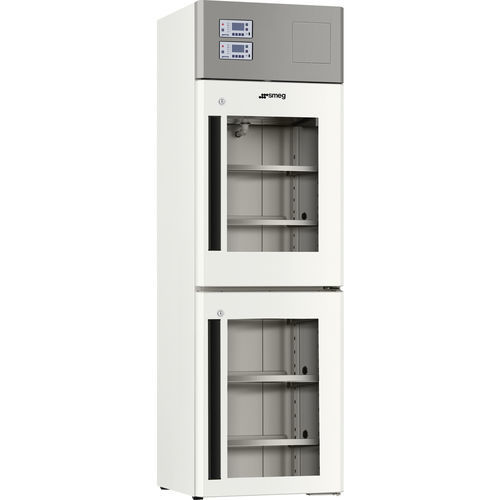

Healthcare facility refrigerator - DTP30GA - SMEG Instruments - for pharmacies / for hospitals / for laboratory
Healthcare facility refrigerator - DTP30GA - SMEG Instruments - for pharmacies / for hospitals / for laboratory
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for laboratory, for pharmacies, for hospitals, for healthcare facilities
Configuration
upright
Number of doors
2 doors
Door type
with glass door
Cooling system
with forced air cooling, with dual cooling system
Power source
electric
Other characteristics
with natural refrigerant, stainless steel, with independent circuits
Capacity

300 l
(79.25 gal)

Temperature range

Min.: 2 °C
(35.6 °F)

Max.: 12 °C
(53.6 °F)

Width

60 cm
(23.6 in)

Depth

60 cm
(24 in)

Height

196 cm
(77.2 in)

Description

Application
  • Life science and healthcare equipment: laboratories, pharmaceutical production, sterilization centers, hospital pharmacies, small analytical labs


Type
  • Dual temperature
  • Door type: Glass
  • Capacity: 150/150 L
  • Temperature range: +2/+12 °C


Technical features
  • Temperature range: +2/+12 °C
  • Data logger: Yes
  • Lock: Standard
  • Through-side port: Optional
  • Backup battery for alarm controller: Optional
  • Remote alarm contact (clean contact): Standard
  • Insulation thickness: 60 mm
  • Evaporation system: Forced-air
  • Refrigerant gas: R290 (CFC free)
  • Internal lighting: LED


Performance / Energy label
  • Noise level: 50 dBA


Electrical connection
  • Supply voltage: 230V, 50Hz
  • Plug: (F;E) Schuko


Manuals and certifications
  • EN 13277 (former DIN 58345) compliance: Optional


Available versions
  • Version with double blind door
  • 60 Hz version


Interface
  • Display: LCD
  • Alarm indicator on display: Yes
  • Acoustic alarm: Yes
  • Visual alarm: Yes
  • USB port: Yes


Construction
  • Door: Glass
  • Inner chamber material: Stainless steel (Scotch Brite finish)
  • Outer structure material: Hot-dip galvanized anticorrosion sheet, PVC white coating
  • Number of doors: 2
  • Two separate compartments: Yes
  • Castors: 4
  • Feet: 2
  • Number of compressors: 2


Logistics information
  • External dimensions: 60 x 60 x 196 cm


Included accessories
  • Standard shelves: 4


Optional
  • TERMDIN – Safety cut-off thermostat for compressor at +2 °C


Specifications / Technical data
  • Model: DTP30GA
  • Type: Dual temperature
  • Total capacity: 150/150 L
  • Temperature interval: +2/+12 °C
  • Refrigerant: R290 (CFC free)
  • Evaporation system: Forced-air
  • Insulation: 60 mm
  • Data logger: Present
  • Lock: Standard
  • Remote alarm contact: Standard
  • Alarm backup battery: Optional
  • Internal lighting: LED
  • Noise level: 50 dBA
  • Voltage: 230V 50Hz
  • Plug: (F;E) Schuko
  • Display: LCD with alarm indicator and USB ports
  • Inner chamber material: Stainless steel (Scotch Brite)
  • Outer structure: Hot-dip galvanized sheet with white PVC coating
  • Doors: 2 (two separate compartments)
  • Castors/feet: 4 castors, 2 feet
  • Compressors: 2
  • External dimensions: 60 x 60 x 196 cm
  • Included accessories: 4 shelves
