Pharmacy refrigerator DT140GA
hospitallaboratoryfor clinical laboratories

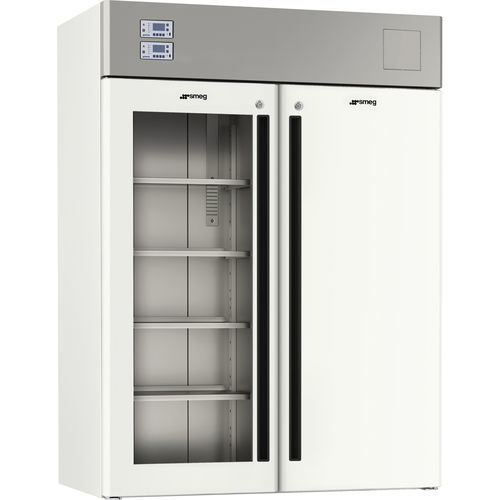

Pharmacy refrigerator - DT140GA - SMEG Instruments - hospital / laboratory / for clinical laboratories
Pharmacy refrigerator - DT140GA - SMEG Instruments - hospital / laboratory / for clinical laboratories
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
laboratory, for clinical laboratories, for pharmacies, hospital
Configuration
upright
Number of doors
2 doors
Door type
with glass door
Cooling system
with forced air cooling, with dual cooling system
Power source
electric
Other characteristics
with natural refrigerant, combination, internal freezer compartment, stainless steel, large capacity, with independent circuits
Capacity

1,400 l
(369.84 gal)

Temperature range

Min.: -30 °C
(-22 °F)

Max.: -10 °C
(14 °F)

Width

144 cm
(56.7 in)

Depth

80 cm
(31 in)

Height

199 cm
(78.3 in)

Description

Intended use
  • Solutions Instruments: Life science; Health Care
  • Life Science sector: Laboratory; Pharmaceutical; Petrochemical; Food industry; Small laboratories
  • Health Care sector: Sterilization units; Care homes; Hospital pharmacy; Diagnostic laboratory


Type
  • Dual temperature
  • Door: Glass (refrigerator) / Solid (freezer)


Technical features
  • Temperature range: +2/+12 °C (refrigerator) / -10/-30 °C (freezer)
  • Datalogger: Yes
  • Capacity: 700/700 L
  • Locks: 2, standard
  • Side through‑hole: Optional
  • Backup battery for alarm acquisition unit: Optional
  • Remote alarm dry contact: Standard
  • Insulation thickness: 60 mm
  • Evaporation: Fan‑assisted (fridge) / Fan‑assisted (freezer)
  • Refrigerant gas: R290
  • CFC Free: Yes
  • Internal lighting: LED


Interface
  • Display: LCD
  • Alarm indicator on display: Yes
  • Audible alarm: Yes
  • Visual alarm: Yes
  • USB port: Yes


Performance / Energy label
  • Noise level: 52 dBA


Electrical connection
  • Supply voltage: 230V, 50 Hz
  • Plug: (F;E) Schuko


Manuals and certifications
  • Compliance with EN 13277 (ex DIN 58345): Optional, refrigerator compartment only


Also available
  • Version with double solid doors
  • 60 Hz version


Construction
  • Door: Glass (refrigerator) / Solid (freezer)
  • Interior material: Stainless steel with Scotch Brite finish
  • External structure material: Hot‑dip galvanized anticorrosion sheet, coated with white PVC film
  • Number of doors: 2
  • Two separate compartments: Yes
  • Castors: 6
  • Feet: 2
  • Number of compressors: 2


Logistics information
  • External dimensions: 144 x 80 x 199 cm


Included accessories
  • Standard shelves: 4 + 4


Optional
  • Compressor safety cut‑off thermostat at +2 °C (TERMDIN)


Characteristics / Technical specifications
  • Model: DT140GA
  • Type: Dual temperature
  • Capacity: 700/700 L
  • Temperature range: +2/+12 °C (refrigerator) / -10/-30 °C (freezer)
  • Refrigerant: R290 (CFC Free)
  • Insulation: 60 mm
  • Datalogger: Yes
  • Locks: 2 (standard)
  • Alarms: audible, visual, display indicator; dry contact for remote alarm
  • Interface: LCD display, USB port
  • Power supply: 230V 50Hz, Schuko plug
  • Noise level: 52 dBA
  • Interior material: Stainless steel Scotch Brite
  • Exterior material: Galvanized sheet coated in white PVC
  • External dimensions: 144 x 80 x 199 cm
  • Castors: 6; Feet: 2; Compressors: 2
