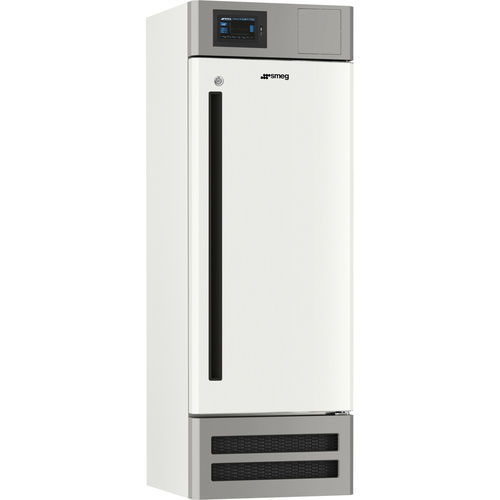

Laboratory refrigerator FV25C1EVO
for clinical laboratoriesfor pharmaciesfor hospitals

Laboratory refrigerator - FV25C1EVO - SMEG Instruments - for clinical laboratories / for pharmacies / for hospitals
Laboratory refrigerator - FV25C1EVO - SMEG Instruments - for clinical laboratories / for pharmacies / for hospitals
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for laboratory, for clinical laboratories, for pharmacies, for hospitals, for healthcare facilities, medical
Configuration
upright, on casters
Number of doors
1-door
Cooling system
with forced air cooling
Power source
electric
Other characteristics
with natural refrigerant, stainless steel
Capacity

250 l
(66.04 gal)

Temperature range

Max.: 12 °C
(53.6 °F)

Min.: 2 °C
(35.6 °F)

Width

60 cm
(23.6 in)

Depth

60 cm
(24 in)

Height

176 cm
(69.3 in)

Description

Target
  • Applications: Life Science and Health Care environments (laboratories, pharmaceutical production, nursing homes, hospital pharmacies, analysis laboratories)


Type
  • Professional medical refrigerator for storage of temperature‑sensitive materials


Technical features
  • Temperature range: +2/+12 °C
  • Datalogger: Yes
  • Capacity: 250 l
  • Lock: Standard
  • Lateral passing hole: Optional
  • Battery backup for alarm control unit: Optional (BTEVO)
  • Free contact for remote alarm: Standard
  • Insulation thickness: 60 mm
  • Evaporation: Ventilated
  • Refrigerant gas: R290 (CFC free)
  • Internal lighting: LED


Performance / Energy label
  • Noise level: 49 dBA


Electrical connection
  • Voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko


Manuals and certifications
  • Conformity to EN 13277 (ex DIN 58345): Yes, after installing BTEVO and TERMDIN


Also available
  • 60 Hz version available on request


Interface
  • Display: LED 7'' touch screen, resolution 800x480, real‑time temperature graph
  • WiFi connection: Yes, real‑time cloud connectivity
  • Alarm indicator on display: Yes
  • Audible alarm: Yes
  • Visible alarm: Yes
  • USB port: Yes


Construction
  • Door: Solid
  • Chamber material: Scotch Brite stainless steel
  • External material: Hot‑galvanised steel with white PVC coating (non‑corrosive, non‑toxic)
  • Number of doors: 1
  • Wheels: 4
  • Feet: 2
  • Number of compressors: 1


Logistic information
  • External dimensions (W x D x H): 60 x 60 x 176 cm


Accessories included
  • Standard shelves: 4


Optional
  • BTEVO: Backup battery (EVO series)
  • TERMDIN: Safety thermostat for +2 °C (DIN58345 compliance)


Specifications / Technical data
  • Model: FV25C1EVO
  • Brand: Smeg
  • Type: Professional medical refrigerator
  • Capacity: 250 l
  • Temperature range: +2/+12 °C
  • Refrigerant: R290 (CFC free)
  • Insulation thickness: 60 mm
  • Evaporation: Ventilated
  • Noise level: 49 dBA
  • Voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko
  • Display: LED 7'' touch screen (800x480) with real‑time temperature graph
  • Connectivity: WiFi (real‑time cloud connection)
  • Datalogger: Yes
  • USB port: Yes
  • Internal lighting: LED
  • External dimensions (W x D x H): 60 x 60 x 176 cm
  • Doors: 1 (solid)
  • Chamber: Scotch Brite stainless steel
  • Standard shelves: 4
  • Wheels/Feet: 4 wheels, 2 feet
  • Compressors: 1
