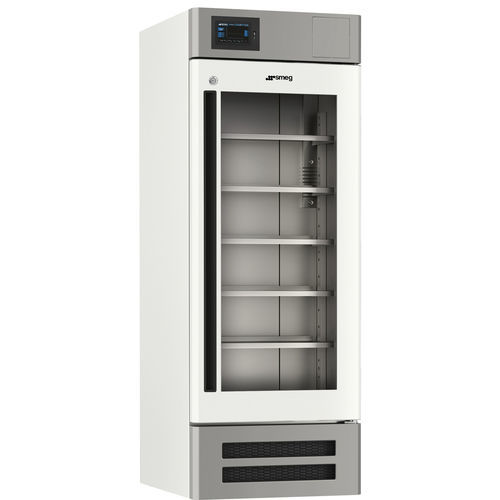

Laboratory refrigerator FV52G1EVO

for pharmaciesfor hospitalsmedical

Overview
FV52G1EVO medical refrigerator: professional refrigerator with glass door, designed for Life Science and Health Care applications. Capacity 520 L and temperature range +2/+12 °C. Equipped with a 7" color touchscreen interface, WiFi connectivity, alarm functions and integrated data logger.

Intended applications

• Instruments solutions: Life Science; Health Care
• Life Science sectors: Laboratory; Pharmaceutical; Food industry; Small laboratories
• Health Care sectors: Sterilization units; Care homes; Hospital pharmacy; Diagnostic laboratory

Main features

• Type: Professional refrigerator
• Door: Glass
• Capacity: 520 L
• Temperature range: +2/+12 °C
• Data logger: Yes (integrated)
• Lock: Standard
• Lateral pass-through port: Optional
• Backup battery for alarm controller: Optional
• Remote alarm dry contact: Standard
• Insulation thickness: 60 mm
• Evaporation: Forced ventilation
• Refrigerant gas: R290
• CFC free: Yes
• Internal lighting: LED
• Noise level: 49 dBA
• Power supply: 230V, 50Hz
• Plug: (F;E) Schuko
• Compliance EN 13277 (ex DIN 58345): Yes, with installation of BTEVO and TERMDIN
• Available versions: Solid door version; 60 Hz version
• Display: 7" color touchscreen, 800x480 resolution, real-time temperature graph
• WiFi connectivity: Yes, cloud connection in real time
• Alarms: Visual and acoustic, alarm indicator on display
• USB port: Yes
• Inner chamber material: Stainless steel, Scotch-Brite finish
• External structure material: Hot-dip galvanized corrosion-resistant sheet metal coated with white PVC film
• Number of doors: 1
• Castors: 4
• Feet: 2
• Compressors: 1
• External dimensions: 70 x 80 x 204 cm
• Included accessories: 4 standard shelves
• Optional accessories: BTEVO (backup battery - EVO series); TERMDIN (safety thermostat cut-off at +2 °C)

Technical specifications

• Model: FV52G1EVO
• Capacity: 520 L
• Temperature range: +2/+12 °C
• Insulation: 60 mm
• Refrigerant: R290 (CFC Free)
• Evaporation: Forced ventilation
• Lighting: Internal LED
• Integrated data logger: Yes
• Interface: 7" touchscreen (800x480) with real-time temperature graph
• Connectivity: WiFi with real-time cloud connection
• Alarms: Visual and acoustic + display indicator + dry contact for remote alarm
• USB port: Yes
• Lock: Standard
• Lateral pass-through port: Optional
• Backup battery for alarm controller: Optional
• Inner chamber material: Stainless steel (Scotch-Brite)
• External material: Hot-dip galvanized sheet metal coated in white PVC
• Doors: 1
• Castors / Feet: 4 castors, 2 feet
• Compressors: 1
• Noise level: 49 dBA
• Power: 230V 50Hz, plug (F;E) Schuko
• External dimensions: 70 x 80 x 204 cm
• Included accessories: 4 shelves
• Compatible optionals: BTEVO, TERMDIN
