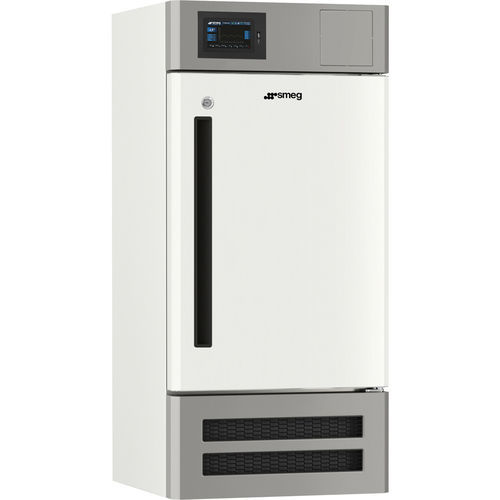

Healthcare facility freezer C30S16C1EVO

for pharmacieshospitallaboratory

Overview
Refrigerazione C30S16C1EVO is a professional laboratory freezer from the EVO series designed to maintain controlled storage conditions with premium materials, integrated traceability systems and built-in connectivity (Smeg).

Intuitive display
The high-resolution 7-inch True Colour full touch screen provides a clear, user-friendly interface with a real-time temperature graph, enabling immediate monitoring and adjustment of storage parameters.

Loading versatility
The unit can be fitted with stainless-steel shelves or drawers, including perforated versions, and configured in several customizable combinations to suit diverse laboratory workflows.

High-quality materials
Smeg freezers ensure optimal preservation conditions with an internal stainless-steel chamber finished in Scotch Brite, ecological polyurethane insulation and an external sheet metal structure coated with white PVC film.

Complete traceability
Precision datalogger records and stores temperature data and alarms. A USB port allows easy data export for documentation and compliance management.

Wi‑Fi and cloud connectivity
Standard Wi‑Fi connectivity enables access to Smeg Cloud for remote data storage, real-time monitoring and centralised management.

Intended applications

• Instruments solutions: Life science; Health Care
• Life Science sector: Laboratory; Pharmaceutical; Petrochemical; Food industry; Small laboratories
• Health Care sector: Sterilisation departments; Care homes; Hospital pharmacy; Diagnostic laboratories

Equipment and options

• Standard accessories: 3 drawers included
• Optional: Backup battery - BTEVO series
• Available version: 60 Hz version

Technical specifications

• Type: Freezer
• Commercial name: C30S16C1EVO
• Capacity: 160 l
• Temperature range: -10 / -32 °C
• Datalogger: Yes
• Lock: Standard
• Lateral pass-through port: Optional
• Backup battery for alarm controller: Optional
• Remote alarm contact (clean contact): Standard
• Insulation thickness: 80 mm
• Evaporation: Static
• Refrigerant gas: R290
• CFC Free: Yes
• Internal lighting: LED
• Noise level: 45 dBA
• Power supply: 230V, 50Hz
• Plug: (F;E) Schuko
• Display: 7" colour LED touch screen, 800x480 resolution, real-time temperature graph
• WiFi connectivity: Yes, with real-time remote cloud connection
• Alarm indicator on display: Yes
• Acoustic alarm: Yes
• Visual alarm: Yes
• USB port: Yes
• Chamber material: Stainless steel with Scotch Brite finish
• External structure material: Hot-dip galvanized anti-corrosion, non-toxic sheet metal coated with white PVC film
• Number of doors: 1
• Castors: 4
• Feet: 2
• External dimensions: 64 x 62 x 140 cm
• Compliance with EN 13277 (ex DIN 58345): Yes, pending installation of BTEVO and TERMDIN
