Hospital refrigerator DT140CEVO
laboratoryfor laboratorycabinet

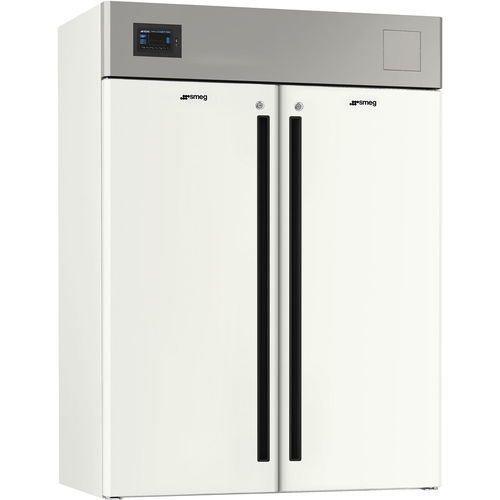

Hospital refrigerator - DT140CEVO - SMEG Instruments - laboratory / for laboratory / cabinet
Hospital refrigerator - DT140CEVO - SMEG Instruments - laboratory / for laboratory / cabinet
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
laboratory, for laboratory, hospital
Configuration
cabinet
Number of doors
2 doors
Other characteristics
combination
Capacity

1,400 l
(369.84 gal)

Temperature range

Max.: 12 °C
(53.6 °F)

Min.: -30 °C
(-22 °F)

Width

144 mm
(5.7 in)

Depth

80 cm
(31 in)

Height

202 mm
(8 in)

Description

Target
  • Life science and Health Care environments: laboratories, pharmaceutical facilities, hospital pharmacies and nursing homes.


Type
  • Double-temperature unit with two independent chambers (refrigerator + freezer) for laboratory storage.


Technical Features
  • Temperature ranges: +2/+12 °C (positive compartment) and -10/-30 °C (negative compartment).
  • Capacity: 700 L (positive) / 700 L (negative).
  • Datalogger included; internal LED lighting.
  • Insulation thickness: 60 mm; refrigerant: R290 (CFC-free).
  • Two solid doors; chamber material: Scotch Brite stainless steel; external material: hot-galvanized steel coated with white PVC.
  • Two compressors; ventilated evaporation for both compartments.
  • Standard: 2 locks, free contact for remote alarm. Optional: lateral passing hole, battery backup for alarm control unit.


Interface and Connectivity
  • 7" LED touchscreen (800x480) with real-time temperature graph.
  • WiFi connectivity with real-time cloud link; USB port for data export.
  • Alarm indicator on display; audible and visible alarms.


Construction
  • Solid doors, Scotch Brite stainless steel interior, external hot-dip galvanized steel with white PVC coating.
  • Mobility/stability: 6 wheels and 2 feet.


Performance / Energy
  • Noise level: 52 dBA.


Electrical Connection
  • Power supply: 230V, 50Hz; Plug: (F;E) Schuko.


Manuals and Certifications
  • Conformity to EN 13277 (ex DIN 58345) when BTEVO and TERMDIN are installed.


Also available
  • 60 Hz version available.


Logistic Information
  • External dimensions: 144 x 80 x 202 cm.


Accessories included
  • Standard shelves: 4 + 4.


Optional Accessories
  • BTEVO: Backup battery (EVO series).
  • TERMDIN: Safety thermostat for DIN58345 compliance (compressor cut-off at +2 °C).


Technical specifications
  • Model: DT140CEVO.
  • Type: Double temperature.
  • Capacity: 700/700 L.
  • Temperature ranges: +2/+12 °C (positive) / -10/-30 °C (negative).
  • Refrigerant: R290 (CFC free).
  • Insulation: 60 mm.
  • Noise level: 52 dBA.
  • Power supply: 230V, 50Hz; Plug: (F;E) Schuko.
  • Doors: 2 (solid); Internal lighting: LED.
  • Datalogger: yes; Remote alarm: free contact (standard); Battery backup: optional; Passing hole: optional.
  • Chamber material: Scotch Brite stainless steel; External material: hot-galvanized steel coated with white PVC.
  • Wheels/Feet: 6 wheels / 2 feet; Compressors: 2.
  • External dimensions: 144 x 80 x 202 cm; Standard shelves: 4 + 4.
