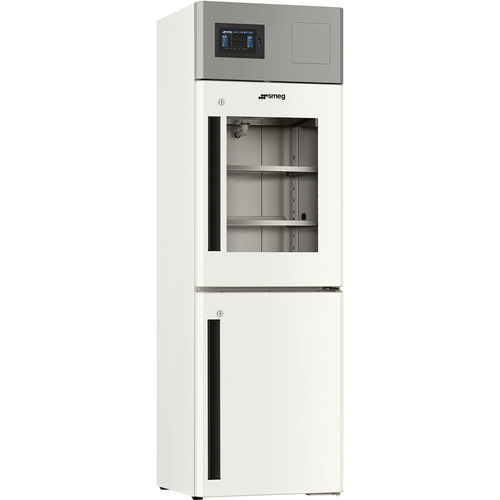

Laboratory refrigerator DT70GEVO

for clinical laboratoriesfor pharmaciesfor hospitals

Application
Solutions for life science and health care storage: laboratory, pharmaceutical and clinical environments

Life science sectors

• Laboratories
• Pharmaceutical production
• Petrochemical industry quality control
• Food analysis
• Small research facilities

Health care sectors

• Sterilization departments
• Care homes
• Hospital pharmacy
• Clinical analysis laboratories

Type
Dual-temperature cabinet
Doors
Glass door (refrigerator) / Solid door (freezer)
Capacity
350/350 L
Temperature range
+2/+12 °C (refrigerator compartment) / -10/-30 °C (freezer compartment)

Technical features
Datalogger: Yes
Locks: 2, standard
Through-pass side port: Optional
Backup battery for alarm acquisition unit: Optional
Clean contact for remote alarm: Standard
Insulation thickness: 60 mm
Evaporation: Forced air (fridge) / Static (freezer)
Refrigerant: R290
CFC free: Yes
Internal lighting: LED

Interface
Display: 7'' color touch screen, 800x480, real-time temperature graph
WiFi connectivity: Yes, real-time cloud connection
Alarm indicator on display: Yes
Audible alarm: Yes
Visual alarm: Yes
USB port: Yes

Performance / Acoustic
Noise level: 50 dBA

Electrical connection
Supply voltage: 230V, 50Hz
Plug: (F;E) Schuko

Construction
Doors: Glass (refrigerator) / Solid (freezer)
Interior material: Stainless steel, Scotch Brite finish
External structure material: Hot-dip galvanized sheet, PVC white coating
Number of doors: 2
Separate compartments: Yes
Castors: 4
Feet: 2
Number of compressors: 2

Manuals and certifications
Conforms to EN 13277 (ex DIN 58345) when equipped with BTEVO and TERMDIN

Also available
Version with two solid doors; 60 Hz version

External dimensions
70 x 80 x 204 cm

Included accessories

• Standard shelves: 2
• Standard drawers: 3

Optional accessories

• BTEVO — Backup battery, EVO series
• TERMDIN — Safety thermostat cut-off at +2°C

Specifications

• Model: DT70GEVO
• Type: Dual-temperature
• Capacity: 350/350 L
• Temperature range: +2/+12 °C (fridge) / -10/-30 °C (freezer)
• Datalogger: Yes
• Locks: 2 (standard)
• Through-pass side port: Optional
• Backup battery for control unit: Optional
• Clean contact for remote alarm: Standard
• Insulation: 60 mm
• Evaporation: Forced air (fridge) / Static (freezer)
• Refrigerant: R290
• CFC Free: Yes
• Internal lighting: LED
• Noise: 50 dBA
• Power: 230V, 50Hz
• Plug: (F;E) Schuko
• Display: 7'' touch 800x480 with real-time temperature graph
• Connectivity: WiFi with real-time remote cloud
• Alarms: audible and visual; alarm indicator on display
• USB port: Yes
• Interior material: Stainless steel (Scotch Brite)
• Exterior material: Hot-dip galvanized sheet with white PVC coating
• Doors: 2 (Glass fridge / Solid freezer)
• Castors/Feet: 4 castors / 2 feet
• Compressors: 2
• External dimensions: 70 x 80 x 204 cm
• Included: 2 shelves, 3 drawers
