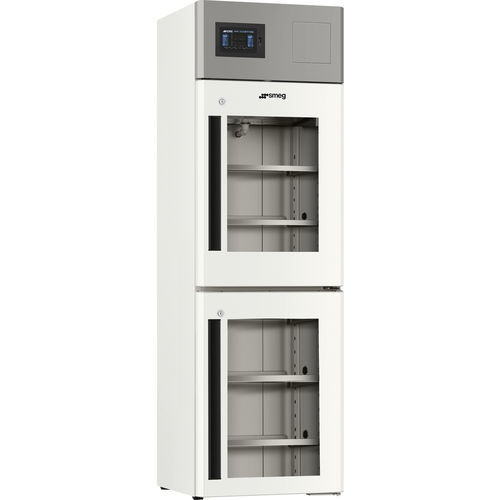

Laboratory refrigerator DTP30GEVO

for pharmacieshospitalfor healthcare facilities

Intended use
Solutions Instruments: Life science; Health care
Life science sector: Laboratory; Pharmaceutical
Health care sector: Care homes; Hospital pharmacy; Analytical laboratory

Type
Dual temperature

Technical features
Temperature range: +2/+12 °C
Datalogger: Yes
Capacity: 150/150 L
Lock: Standard
Side pass-through port: Optional
Backup battery for alarm control unit: Optional
Clean contact for remote alarm: Standard
Insulation: 60 mm
Evaporation: Forced-air
Refrigerant gas: R290
CFC Free: Yes
Internal lighting: LED

Performance / Energy label
Noise level: 50 dBA

Electrical connection
Supply voltage: 230V, 50Hz
Plug: (F;E) Schuko

User manuals and certifications
Conformity to EN 13277 (ex DIN 58345): Yes, subject to installation of BTEVO and TERMDIN

Also available
Version with double solid door; 60 Hz version

Interface
Display: 7'' color LED touchscreen, resolution 800x480, with real-time temperature graph
WiFi connectivity: Yes, with real-time remote cloud connection
Alarm indicator on display: Yes
Acoustic alarm: Yes
Visual alarm: Yes
USB port: Yes

Construction
Door: Glass
Chamber material: Stainless steel with Scotch Brite finish
External structure material: Hot-dip galvanized sheet, anti-corrosion and non-toxic, coated with white PVC film
Number of doors: 2
Two separate compartments: Yes
Castors: 4
Feet: 2
Number of compressors: 2

Logistic information
External dimensions: 60 x 60 x 196 cm

Included accessories
Standard shelves: 4

Optional
BTEVO - Buffer battery - EVO series
TERMDIN - Safety thermostat cut-off at +2 °C for compressor

Characteristics / technical specifications

• Model: DTP30GEVO
• Type: Dual temperature
• Temperature range: +2/+12 °C
• Capacity: 150/150 L
• Refrigerant gas: R290
• Insulation: 60 mm
• Evaporation: Forced-air
• Datalogger: Yes
• Lock: Standard
• Side pass-through port: Optional
• Backup battery for alarm control unit: Optional
• Clean contact for remote alarm: Standard
• Internal lighting: LED
• Display: Touch screen 7'', 800x480, real-time temperature graph
• Connectivity: WiFi with real-time cloud
• Alarms: acoustic and visual, display indicator
• USB port: Yes
• Noise level: 50 dBA
• Supply voltage: 230V, 50Hz
• Plug: (F;E) Schuko
• Chamber material: Stainless steel (Scotch Brite)
• External structure material: Hot-dip galvanized sheet coated in white PVC
• Number of doors: 2
• Number of compressors: 2
• External dimensions: 60 x 60 x 196 cm
• Included accessories: 4 shelves
• Optional cited: BTEVO, TERMDIN
