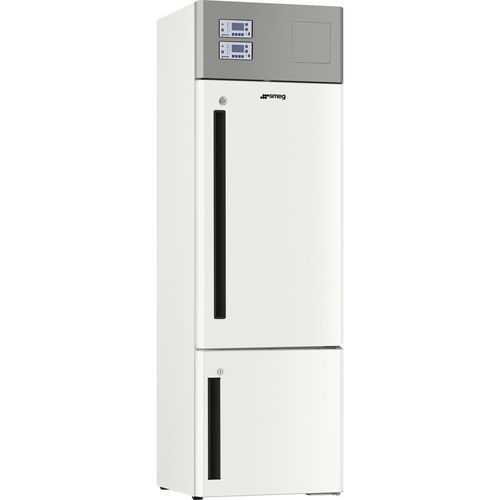

Pharmacy refrigerator DT28CA

hospitallaboratoryfor laboratory

Intended use

• Life science: Laboratory; Pharmaceutical production
• Health care: Hospitals; Hospital pharmacy; Clinical analysis laboratories

Type
Dual-temperature unit. Door: Solid. Capacity: 200/100 L. Temperature range: +2/+12 °C (refrigerator) / -10/-30 °C (freezer).

Technical features

• Temperature range: +2/+12 °C (refrigerator) / -10/-30 °C (freezer)
• Datalogger: Yes
• Capacity: 200/100 L
• Locks: 2, standard
• Through-side port: Optional
• Backup battery for alarm acquisition controller: Optional
• Remote alarm contact (clean contact): Standard
• Insulation thickness: 60 mm
• Evaporation: Ventilated (refrigerator) / Static (freezer)
• Refrigerant: R290
• CFC-free: Yes
• Interior lighting: LED

Electrical connection
Supply voltage: 230 V, 50 Hz. Plug: Schuko (F; E).

Manuals and certifications
Conformity to EN 13277 (ex DIN 58345): Optional, fridge compartment only.

Also available
60 Hz version available.

Interface

• Display: LCD
• Alarm indicator on display: Yes
• Acoustic alarm: Yes
• Visual alarm: Yes
• USB port: Yes

Construction
Door: Solid. Interior material: Stainless steel with Scotch Brite finish. External structure: Hot-dip galvanized anti-corrosion sheet, food-safe, coated with white PVC film. Number of doors: 2. Separate compartments: Yes. Castors: 4. Feet: 2. Number of compressors: 2.

Logistics information
External dimensions: 60 x 60 x 194 cm.

Included accessories

• Standard shelves: 3
• Standard drawers: 2

Optional
Safety thermostat TERMDIN (compressor cut-off at +2 °C).

Technical data

• Model: DT28CA
• Type: Dual-temperature
• Capacity: 200/100 L
• Temperature range: +2/+12 °C (refrigerator) / -10/-30 °C (freezer)
• Refrigerant: R290
• Insulation: 60 mm
• Power supply: 230 V 50 Hz (60 Hz version available)
• External dimensions: 60 x 60 x 194 cm
• Number of compressors: 2
• Doors: 2 (solid)
