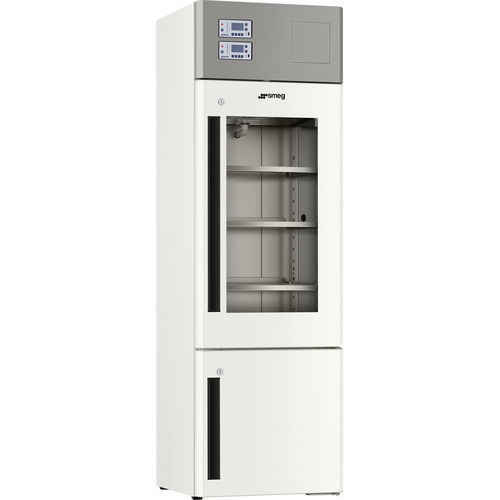

Pharmacy refrigerator DT28GA

hospitallaboratorycabinet

Overview
DT28GA is a double-temperature refrigeration unit combining a glass-door refrigerator and a solid-door freezer. It is engineered for life science and healthcare environments including laboratories, hospital pharmacies and CSSD where separate positive and negative storage is required.

Key data

• Type: Double temperature
• Doors: Glass (refrigerator) / Solid (freezer)
• Capacity: 200/100 L
• Temperature range: +2/+12 °C (positive compartment) / -10/-30 °C (negative compartment)

Target

• Instruments Solutions: Life science; Health Care
• Life Science sector: Laboratory; Pharmaceutical; Petrochemical Industry; Agro-food; Small Laboratories
• Health Care Sector: CSSD; Nursing Homes; Hospital Pharmacy; Analysis Laboratory

Features

• Datalogger: Yes
• Locks: 2, standard
• Lateral passing hole: Optional
• Safety thermostat +2°C DIN58345 Compliance: Optional
• Battery backup for alarms electronic control unit: Optional
• Free contact for remote alarm: Standard
• Insulation: 60 mm
• Vaporisation: Ventilated (refrigerator) / Static (freezer)
• Refrigerant gas: R290
• CFC Free: Yes

Performance / Energy

• Noise level: 50 dBA

Electrical connection

• Voltage: 230V, 50Hz
• Plug: (F;E) Schuko

Also available

• Double solid door version
• 60 Hz version

Interface

• Display: LCD
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visible alarm: Yes
• USB port: Yes

Construction

• Door: Glass (refrigerator) / Solid (freezer)
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel non-corrosive and non-toxic, coated with white PVC
• Doors quantity: 2
• Two different chambers: Yes
• Wheels: 4
• Feet: 2
• Compressors number: 2

Logistic information

• External dimensions: 60 x 60 x 197 cm

Accessories included

• Standard shelves: 3
• Standard drawers: 2

Optional accessories

• TERMDIN: Safety thermostat +2°C DIN58345 compliance (optional)

Technical specifications

• Model: DT28GA
• Type: Double temperature
• Doors: Glass (refrigerator) / Solid (freezer)
• Capacity: 200/100 L
• Temperature range: +2/+12 °C (positive compartment) / -10/-30 °C (negative compartment)
• Datalogger: Yes
• Locks: 2 (standard)
• Lateral passing hole: Optional
• Safety thermostat +2°C DIN58345 Compliance: Optional
• Battery backup for alarms electronic control unit: Optional
• Free contact for remote alarm: Standard
• Insulation: 60 mm
• Vaporisation: Ventilated (refrigerator) / Static (freezer)
• Refrigerant gas: R290
• CFC Free: Yes
• Noise level: 50 dBA
• Voltage: 230V, 50Hz
• Plug: (F;E) Schuko
• Available versions: Double solid door version; 60 Hz version
• Display: LCD; Alarm indicator on display: Yes; Audible alarm: Yes; Visible alarm: Yes; USB port: Yes
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel coated with white PVC
• Doors quantity: 2; Two different chambers: Yes
• Wheels: 4; Feet: 2; Compressors: 2
• External dimensions: 60 x 60 x 197 cm
• Accessories included: 3 standard shelves, 2 standard drawers
