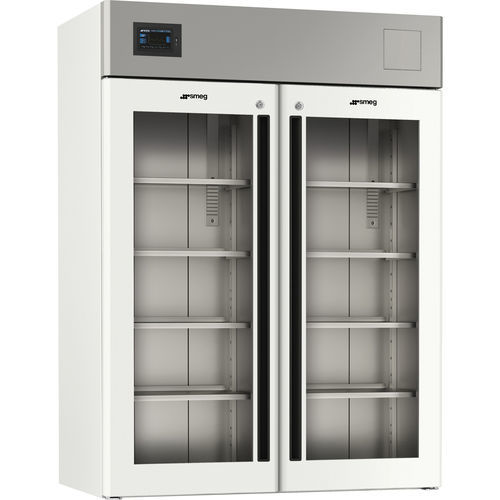

Laboratory refrigerator DTP140GEVO

for clinical laboratoriesfor pharmaciesfor hospitals

Overview
Professional double-temperature medical refrigerator with two separate compartments and a glass door, designed for life science and health care applications. Capacity: 700/700 L. Temperature range: +2/+12 °C.

Intended use

• Instruments solutions: Life science; Health Care
• Life science sector: Laboratory; Pharmaceutical
• Health care sector: Care homes; Hospital pharmacy; Diagnostic laboratory

Type
Double temperature

Technical features

• Temperature range: +2/+12 °C
• Datalogger: Yes
• Capacity: 700/700 L
• Lock: Standard
• Side pass-through port: Optional
• Backup battery for alarm acquisition unit: Optional
• Clean contact for remote alarm: Standard
• Insulation: 60 mm
• Evaporation: Ventilated
• Refrigerant gas: R290
• CFC free: Yes
• Internal lighting: LED

Interface and alarms

• Display: Touch screen, color LED 7" (800x480) with real-time temperature graph
• WiFi connectivity: Yes, with real-time cloud connection
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visual alarm: Yes
• USB port: Yes

Construction

• Door: Glass
• Chamber material: Stainless steel with Scotch-Brite finish
• External structure: Hot-dip galvanized anti-corrosion sheet, coated with white PVC film
• Number of doors: 2
• Two separate compartments: Yes
• Castors: 6
• Feet: 2
• Number of compressors: 2

Performance / Energy label

• Noise level: 52 dBA

Electrical connection

• Supply voltage: 230V, 50Hz
• Plug: (F;E) Schuko

Manuals and certifications

• Compliance with EN 13277 (ex DIN 58345): Yes, subject to installation of BTEVO and TERMDIN

Also available

• Version with double solid doors
• 60 Hz version

Included accessories

• Standard shelves: 8

Options

• TERMDIN – Safety thermostat cut-off for compressor at +2 °C
• BTEVO – Backup battery, EVO series

Logistics information

• External dimensions: 144 x 80 x 202 cm

Characteristics / Technical specifications

• Model: DTP140GEVO
• Type: Double temperature
• Capacity: 700/700 L
• Temperature range: +2/+12 °C
• Refrigerant gas: R290 (CFC Free)
• Datalogger: Yes
• Lock: Standard
• Insulation: 60 mm
• Evaporation: Ventilated
• Internal lighting: LED
• Display: Touch screen 7" (800x480) with real-time graph
• WiFi: Yes (real-time cloud connection)
• Alarms: audible, visual, display indicator, clean contact for remote alarm
• USB port: Yes
• Voltage: 230V, 50Hz; Plug: (F;E) Schuko
• Noise level: 52 dBA
• Chamber material: Stainless steel (Scotch-Brite)
• External structure: Hot-dip galvanized sheet coated in white PVC
• Doors: 2; Castors: 6; Feet: 2; Compressors: 2
• External dimensions: 144 x 80 x 202 cm
