Laboratory refrigerator DT28CEVO
for clinical laboratoriesfor pharmaciesfor hospitals

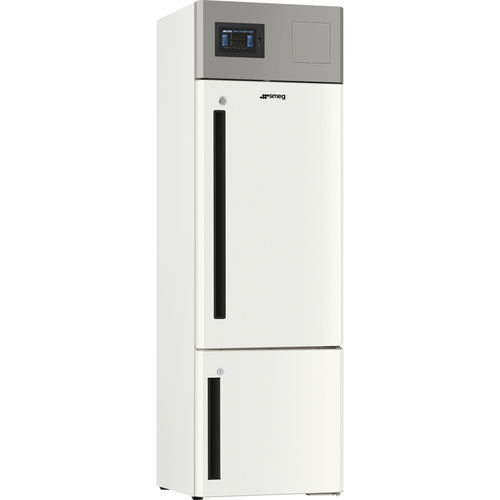

Laboratory refrigerator - DT28CEVO - SMEG Instruments - for clinical laboratories / for pharmacies / for hospitals
Laboratory refrigerator - DT28CEVO - SMEG Instruments - for clinical laboratories / for pharmacies / for hospitals
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
laboratory, for clinical laboratories, for pharmacies, for hospitals, medical
Configuration
cabinet, upright
Number of doors
2 doors
Cooling system
with dual cooling system
Power source
electric
Other characteristics
with natural refrigerant, with drawer, combination, internal freezer compartment, stainless steel, large capacity, with independent circuits
Capacity

300 l
(79.25 gal)

Temperature range

Max.: 12 °C
(53.6 °F)

Min.: -30 °C
(-22 °F)

Width

60 cm
(23.6 in)

Depth

60 cm
(24 in)

Height

194 cm
(76.4 in)

Description

Overview
  • Type: Dual temperature
  • Door: Solid
  • Capacity: 200/100 L
  • Temperature range: +2/+12 °C (fridge) / -10/-30 °C (freezer)


Intended use
  • Instruments solutions: Life science; Health Care
  • Life Science sector: Laboratory; Pharmaceutical
  • Health Care sector: Care homes; Hospital pharmacy; Clinical laboratory


Technical features
  • Temperature range: +2/+12 °C (fridge) / -10/-30 °C (freezer)
  • Datalogger: Yes
  • Capacity: 200/100 L
  • Locks: 2, standard
  • Lateral pass-through hole: Optional
  • Backup battery for alarm acquisition unit: Optional
  • Clean contact for remote alarm: Standard
  • Insulation: 60 mm
  • Evaporation: Fan-assisted (fridge) / Static (freezer)
  • Refrigerant gas: R290
  • CFC-free: Yes
  • Internal lighting: LED


Electrical connection
  • Supply voltage: 230V, 50Hz
  • Plug: Schuko (F;E)


Interface
  • Display: 7" color LED touch screen, resolution 800x480, with real-time temperature graph
  • WiFi connectivity: Yes, with real-time connection to remote cloud
  • Alarm indicator on display: Yes
  • Audible alarm: Yes
  • Visual alarm: Yes
  • USB port: Yes


Construction
  • Door: Solid
  • Inner chamber material: Stainless steel with Scotch-Brite finish
  • External structure material: Hot-dip galvanized anticorrosion sheet, non-toxic, coated with white PVC film
  • Number of doors: 2
  • Two separate compartments: Yes
  • Casters: 4
  • Feet: 2
  • Number of compressors: 2


Manuals and certifications
  • Compliance with EN 13277 (ex DIN 58345): Yes, subject to installation of BTEVO and TERMDIN


Also available
  • 60 Hz version


Accessories included
  • Standard shelves: 3
  • Standard drawers: 2


Optional
  • TERMDIN: Safety thermostat cut-off for compressor at +2 °C
  • BTEVO: Backup battery - EVO series


Technical specifications
  • Model: DT28CEVO
  • Type: Dual temperature
  • Capacity: 200/100 L
  • Temperature range: +2/+12 °C (fridge) / -10/-30 °C (freezer)
  • Datalogger: Yes
  • Locks: 2 (standard)
  • Clean contact for remote alarm: Standard
  • Insulation: 60 mm
  • Evaporation: Fan-assisted (fridge) / Static (freezer)
  • Refrigerant gas: R290 (CFC-free)
  • Internal lighting: LED
  • Display: 7" LED touch screen 800x480
  • Connectivity: WiFi with real-time remote cloud
  • USB port: Yes
  • Voltage: 230V 50Hz (60 Hz version available)
  • External dimensions: 60 x 60 x 194 cm
