Laboratory refrigerator FV140C2EVO
for clinical laboratoriesfor pharmaciesfor hospitals

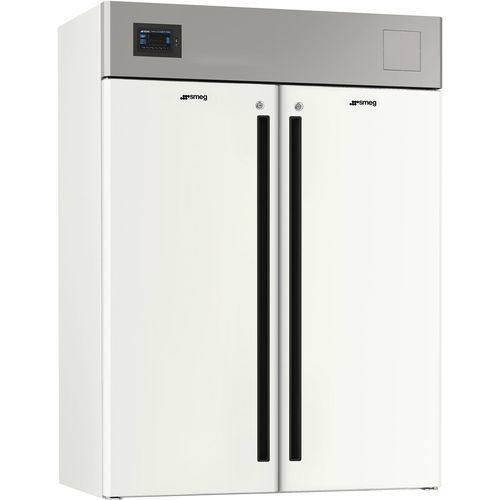

Laboratory refrigerator - FV140C2EVO - SMEG Instruments - for clinical laboratories / for pharmacies / for hospitals
Laboratory refrigerator - FV140C2EVO - SMEG Instruments - for clinical laboratories / for pharmacies / for hospitals
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for laboratory, for clinical laboratories, for pharmacies, for hospitals, medical
Configuration
cabinet, upright, vertical
Number of doors
2 doors
Cooling system
with forced air cooling
Power source
electric
Other characteristics
with natural refrigerant, stainless steel, large capacity
Capacity

1,400 l
(369.84 gal)

Temperature range

Min.: 2 °C
(35.6 °F)

Max.: 12 °C
(53.6 °F)

Width

140 cm
(55.1 in)

Depth

80 cm
(31 in)

Height

199 cm
(78.3 in)

Description

Intended use
  • Applications: Life science; Health care
  • Life science sector: Laboratory; Pharmaceutical production
  • Health care sector: Care homes; Hospital pharmacy; Diagnostic laboratory


Type
Professional medical refrigerator


Technical features
  • Temperature range: +2/+12 °C
  • Datalogger: Yes (integrated)
  • Capacity: 1400 L
  • Lock: Standard
  • Side pass-through port: Optional
  • Backup battery for alarm controller: Optional
  • Remote alarm dry contact: Standard
  • Insulation thickness: 60 mm
  • Evaporation: Forced-air
  • Refrigerant: R290
  • CFC Free: Yes
  • Internal lighting: LED


Performance / Energy label
  • Noise level: 50 dBA


Electrical connection
  • Power supply: 230V, 50Hz
  • Plug: Schuko (F;E)


Manuals and certifications
  • Conformity to EN 13277 (ex DIN 58345): Yes, subject to installation of BTEVO and TERMDIN


Available versions
60 Hz version available


Interface and alarms
  • Display: 7'' color touch screen LED, 800x480 resolution, real-time temperature graph
  • WiFi connectivity: Yes, with real-time cloud connection
  • Alarm indicator on display: Yes
  • Audible alarm: Yes
  • Visual alarm: Yes
  • USB port: Yes


Construction
  • Door: Blind (solid)
  • Interior material: Stainless steel with Scotch Brite finish
  • External structure material: Hot-dip galvanized sheet, non-toxic anticorrosion, coated with white PVC film
  • Number of doors: 2
  • Two separate compartments: Yes
  • Castors: 4
  • Feet: 2
  • Number of compressors: 1


Logistic information
  • External dimensions: 140 x 80 x 199 cm


Included accessories
  • Standard shelves: 8


Options
  • BTEVO - Backup battery - EVO series
  • TERMDIN - Safety thermostat cut-off for compressor at +2 °C


Technical specifications
  • Model: FV140C2EVO
  • Type: Professional medical refrigerator
  • Capacity: 1400 L
  • Operating temperature: +2/+12 °C
  • Refrigerant: R290 (CFC Free)
  • Insulation: 60 mm
  • Lighting: Internal LED
  • Integrated datalogger
  • Standard lock; remote alarm dry contact standard
  • 7" touch display 800x480; WiFi and cloud connection; USB port
  • Noise level: 50 dBA
  • Power: 230V, 50Hz; Schuko plug
  • External dimensions: 140 x 80 x 199 cm
  • Doors: 2 (blind), two separate compartments
  • Structure: stainless steel interior; hot-dip galvanized exterior sheet with white PVC film
  • Castors 4 / Feet 2
  • Compressor: 1
