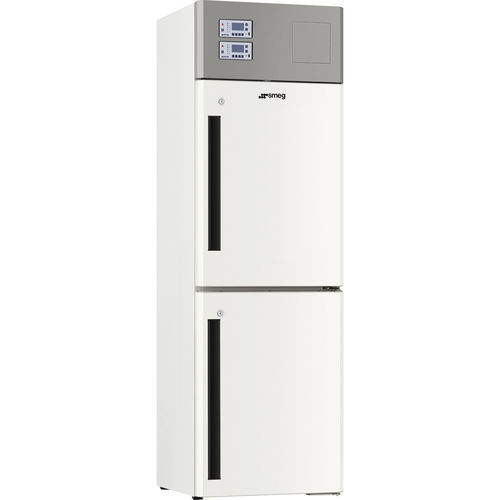

Laboratory refrigerator DTP30CA

for pharmacieshospitalmedical

Brief description
Smeg designed in Italy. The DTP30CA is a professional dual-temperature refrigerator developed for Life Science and Health Care applications, engineered for secure storage of sensitive materials and medical devices.

Key features

• Type: Dual-temperature
• Door: Blind
• Capacity: 150/150 L
• Temperature range: +2/+12 °C

Intended use
Solutions: Life Science; Health Care

• Life Science: Laboratory; Pharmaceutical
• Health Care: Care homes; Hospital pharmacy; Diagnostic laboratory

Technical features

• Temperature range: +2/+12 °C
• Datalogger: Yes
• Capacity: 150/150 L
• Lock: Standard
• Through-side port: Optional
• Backup battery for alarm unit: Optional
• Clean contact for remote alarm: Standard
• Insulation thickness: 60 mm
• Evaporation: Forced air
• Refrigerant gas: R290
• CFC free: Yes
• Internal lighting: LED

Performance / Energy label

• Noise level: 50 dBA

Electrical connection

• Supply voltage: 230 V, 50 Hz
• Plug: Schuko (F;E)

Manuals & certifications

• Compliance with EN 13277 (ex DIN 58345): Optional

Also available

• Available version: 60 Hz

Interface

• Display: LCD
• Alarm indicator on display: Yes
• Acoustic alarm: Yes
• Visual alarm: Yes
• USB port: Yes

Construction

• Door: Blind
• Inner chamber material: Stainless steel, Scotch-Brite finish
• External structure material: Hot-dip galvanized anti-corrosion sheet covered with white PVC film
• Number of doors: 2
• Two separate compartments: Yes
• Castors: 4
• Feet: 2
• Number of compressors: 2

Logistics information
External dimensions: 60 x 60 x 196 cm

Included accessories

• Standard shelves: 4

Optional

• TERMDIN: Safety thermostat compressor cut-off at +2 °C (optional)

Technical specifications

• Model: DTP30CA
• Type: Dual-temperature
• Temperature range: +2/+12 °C
• Capacity: 150/150 L
• Refrigerant gas: R290
• Evaporation: Forced air
• Insulation: 60 mm
• Internal lighting: LED
• Datalogger: Yes
• Lock: Standard
• Clean contact for remote alarm: Standard
• Backup battery for alarm acquisition unit: Optional
• Number of compressors: 2
• Castors/Feet: 4 castors / 2 feet
• Inner chamber material: Stainless steel, Scotch-Brite finish
• External structure material: Hot-dip galvanized sheet coated with white PVC
• Supply voltage: 230 V, 50 Hz
• Plug: Schuko (F;E)
• Noise level: 50 dBA
• External dimensions: 60 x 60 x 196 cm
• Door: Blind (2 doors)
• Display/Alarms: LCD, acoustic and visual alarm, alarm indicator on display, USB port
• Available version: 60 Hz
• Standard shelves: 4
