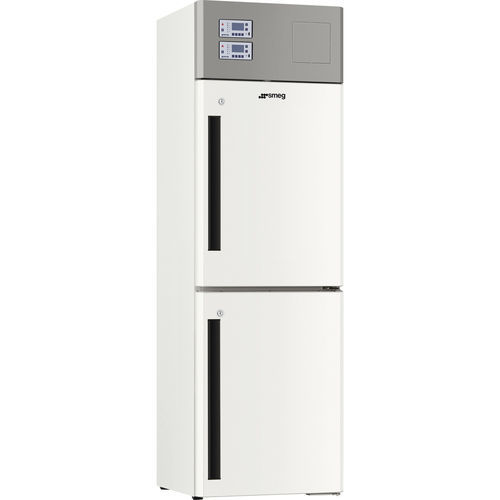

Healthcare facility refrigerator DTP70CA

for pharmacieshospitalfor laboratory

Intended use
Soluzioni Instruments: Life science; Health Care
Life Science sector: Laboratory; Pharmaceutical
Health Care sector: Care homes; Hospital pharmacy; Medical analysis laboratory

Type
Double temperature

Technical features

• Temperature range: +2/+12 °C
• Datalogger: Yes
• Capacity: 350/350 L
• Lock: Standard
• Lateral pass-through port: Optional
• Backup battery for alarm acquisition unit: Optional
• Clean contact for remote alarm: Standard
• Insulation: 60 mm
• Evaporation: Forced-air
• Refrigerant gas: R290
• CFC Free: Yes
• Internal lighting: LED

Performance / Energy label
Noise level: 50 dBA

Electrical connection
Supply voltage: 230V, 50Hz
Plug: (F;E) Schuko

Manuals and certifications
Conformity to EN 13277 (ex DIN 58345): Optional

Also available
60 Hz version available

Interface

• Display: LCD
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visual alarm: Yes
• USB port: Yes

Construction
Door: Solid
Inner chamber material: Stainless steel with Scotch-Brite finish
External structure material: Hot-dip galvanized anti-corrosion and non-toxic sheet, coated with white PVC film
Number of doors: 2
Two separate compartments: Yes
Castors: 4
Feet: 2
Number of compressors: 2

Logistics information
External dimensions: 70 x 80 x 204 cm

Included accessories
Standard shelves: 4

Optional
TERMDIN — Safety thermostat compressor cut-off at +2 °C

Technical specifications

• Model: DTP70CA
• Type: Double temperature
• Temperature range: +2/+12 °C
• Capacity: 350/350 L
• Refrigerant gas: R290 (CFC Free)
• Evaporation: Forced-air
• Insulation: 60 mm
• Number of compressors: 2
• Noise level: 50 dBA
• Power supply: 230V, 50Hz
• Plug: (F;E) Schuko
• Display: LCD; Alarms: audible and visual; Alarm indicator on display: Yes; USB port: Yes
• Internal lighting: LED
• Doors: 2 (solid), two separate compartments
• External dimensions: 70 x 80 x 204 cm
• Equipment: 4 standard shelves
