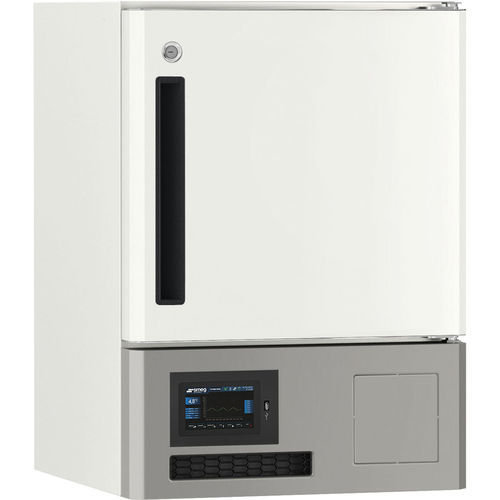

Pharmacy freezer C20V10C1EVO

hospitallaboratorymedical

Overview
Refrigerazione C20V10C1EVO is a professional freezer designed for Life Science and Health Care applications. It provides intelligent temperature control, full data traceability and cloud connectivity for remote monitoring.

Key features

• 7-inch high-resolution full touch True Colour graphic display with real-time temperature graph
• Integrated precision datalogger with USB port for data export
• Standard Wi‑Fi connectivity with access to Smeg Cloud for remote monitoring and management
• Stainless steel interior with Scotch Brite finish and ecological polyurethane insulation
• Modular versions and accessories: stainless steel shelves or drawers (including perforated), optional buffer battery and other options

Functional details

• Type: Freezer
• Door: Solid
• Capacity: 100 L
• Temperature range: -10 to -25 °C
• Lock: Standard
• Side pass-through port: Optional
• Clean contact for remote alarm: Standard
• Internal lighting: LED

Materials and construction
The internal chamber is stainless steel with Scotch Brite finish; insulation is ecological polyurethane (60 mm). The external structure is hot-dip galvanized anticorrosion sheet metal coated with white PVC film. Equipped with one compressor, four castors and two feet; single door.

Interface and alarms
7-inch colour touchscreen (resolution 800x480) with real-time temperature graph. Display alarm indicator, audible and visual alarm. USB port for data export. Buffer battery for alarm acquisition unit available as optional.

Traceability and connectivity
Integrated datalogger for temperature and alarm recording; USB port for data download. Standard Wi‑Fi connectivity with remote cloud connection for monitoring and management.

Accessories and options

• Included accessories: 2 standard drawers
• Optional: buffer battery (BTEVO) and other modular accessories; possibility of stainless steel shelves or drawers, including perforated versions
• Also available in 60 Hz version

Intended use
Solutions Instruments: Life Science; Health Care. Life Science sectors: Laboratory, Pharmaceutical, Petrochemical industry, Food sector, Small laboratories. Health Care sectors: Sterilisation units, Wash rooms, Nursing homes, Hospital pharmacy, Analysis laboratories.

Characteristics / Technical specifications

• Temperature range: -10 to -25 °C
• Capacity: 100 L
• Insulation: 60 mm ecological polyurethane
• Evaporation: Static
• Refrigerant gas: R290
• CFC Free: Yes
• Internal lighting: LED
• Datalogger: Yes (temperature and alarm recording and storage)
• USB port: Yes
• Clean contact for remote alarm: Standard
• Buffer battery for alarm acquisition unit: Optional (BTEVO)
• Lock: Standard
• Noise level: 45 dBA
• Power supply: 230V, 50Hz
• Plug: (F;E) Schuko
• Chamber material: Stainless steel with Scotch Brite finish
• External structure material: Hot-dip galvanized sheet, coated in white PVC
• Number of doors: 1
• Castors: 4
• Feet: 2
• Number of compressors: 1
• External dimensions: 60 x 60 x 85 cm
• Compliance EN 13277 (ex DIN 58345): Yes, subject to installation of BTEVO and TERMDIN
