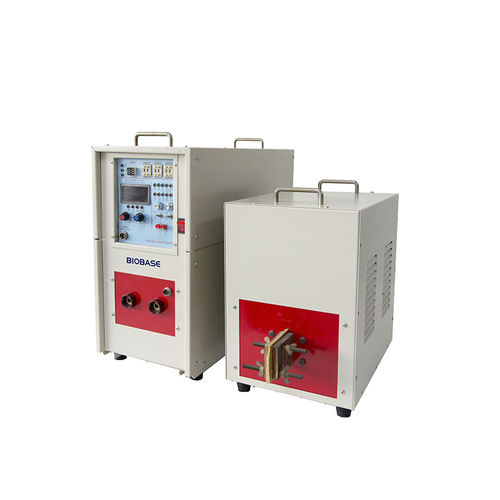

Electric heating unit BK-HIH35high-performance
Add to favorites
Compare this product
Characteristics
- Power source
- electric
- Other characteristics
- high-performance
Description
Product overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Description
Industrial high-frequency induction heater based on imported IGBT solid-state power modules and second-generation frequency-conversion technology. Dedicated cooling and robust thermal management allow continuous operation at maximal output for extended production cycles. Built for stable, repeatable heating control in industrial processes.
Features
Technical Parameters
Model: BK-HIH35
Maximum Oscillation Power: 40 kVA
Input Voltage Range: 380V 50/60Hz
Output Oscillation Frequency: 30 kHz ~ 80 kHz
Maximum Input Current: 53 A
Heating Time: 1 ~ 99 s
Heat Preservation Time: 1 ~ 99 s
Cooling Time: 1 ~ 99 s
Duty Cycle: 100%
Cooling Water Flow: 0.2 MPa ≥ 6 L/min
Cooling Water Temperature: <45℃
Power Supply: 380V 50/60Hz
External Size (W*D*H): Controller: 650*260*540 mm; Transformer: 500*270*450 mm
Net Weight: Controller: 40 kg; Transformer: 32 kg
Package Size (W*D*H): 680*650*620 mm
Gross Weight: 100 kg
Characteristics / technical specifications
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Description
Industrial high-frequency induction heater based on imported IGBT solid-state power modules and second-generation frequency-conversion technology. Dedicated cooling and robust thermal management allow continuous operation at maximal output for extended production cycles. Built for stable, repeatable heating control in industrial processes.
Features
- Imported IGBT solid-state power module and 2nd-generation frequency-conversion technology with dedicated cooling for continuous 24 h maximal-power operation.
- Constant-current and constant-power control for stable heating and improved energy efficiency.
- Simple installation: connect to 380V power and cooling water (inlet/outlet); professional installation typically not required.
- Programmable timing: adjustable heating time, heat-preservation time, digital settings, heating current and preservation current.
- Self-diagnosis alarm and multi-level protections with display for over-current, over-temperature, insufficient cooling water and phase loss.
Technical Parameters
Model: BK-HIH35
Maximum Oscillation Power: 40 kVA
Input Voltage Range: 380V 50/60Hz
Output Oscillation Frequency: 30 kHz ~ 80 kHz
Maximum Input Current: 53 A
Heating Time: 1 ~ 99 s
Heat Preservation Time: 1 ~ 99 s
Cooling Time: 1 ~ 99 s
Duty Cycle: 100%
Cooling Water Flow: 0.2 MPa ≥ 6 L/min
Cooling Water Temperature: <45℃
Power Supply: 380V 50/60Hz
External Size (W*D*H): Controller: 650*260*540 mm; Transformer: 500*270*450 mm
Net Weight: Controller: 40 kg; Transformer: 32 kg
Package Size (W*D*H): 680*650*620 mm
Gross Weight: 100 kg
Characteristics / technical specifications
- Model: BK-HIH35
- Maximum Oscillation Power: 40 kVA
- Input Voltage: 380V 50/60Hz
- Output Frequency Range: 30 kHz – 80 kHz
- Maximum Input Current: 53 A
- Heating/Preservation/Cooling Time: adjustable 1–99 s
- Duty Cycle: 100%
- Cooling water: ≥6 L/min at 0.2 MPa, temperature <45℃
- Dimensions and weights as specified above
