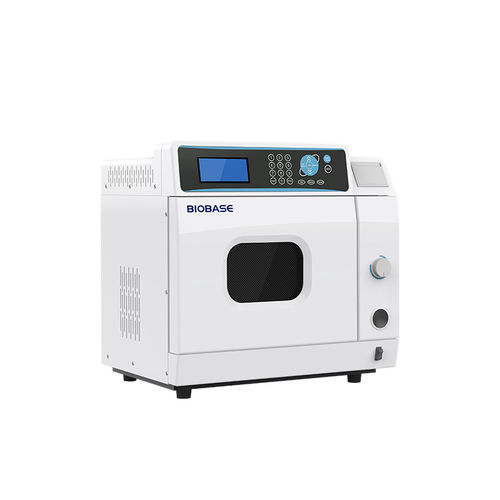

Microwave synthesis platform BK-ME2

Product overview

• Brand: BIOBASE
• Product origin: CHINA
• Model: BK-ME2
• Delivery time: within 7 days
• Supply capacity: factory direct

Introduction
The BK-ME2 microwave catalytic synthesis extractor is a laboratory instrument engineered for industrial and R&D environments to accelerate chemical synthesis and extraction using microwave energy. It shortens reaction times, improves yields and reproducibility compared with conventional heating methods, while supporting controlled, programmable reaction sequences.

Features

• High-precision temperature sensor with ±1℃ control accuracy and ±0.2℃ measurement accuracy.
• Programmable temperature control with up to 20 reaction stages and 10 stored programs.
• 30 L stainless-steel, non-magnetic chamber suitable for a range of reaction vessels.
• Variable-rate heating and stepless power adjustment (0–1000 W).
• Magnetic stirring 0–2000 rpm; optional mechanical stirring kit available.
• LCD display showing real-time reaction parameters and temperature curves.
• Embedded printer for one-click printing of experimental parameters.
• Open reaction configuration: supports dropping funnel and condenser for reflux operations.
• Provision for inert gas inlet to support atmosphere-protected reactions.

Technical parameters

• Model: BK-ME2
• Reaction volume: 10–1000 ml
• Chamber volume: 30 L (stainless steel, non-magnetic)
• Stirring speed: magnetic 0–2000 rpm (mechanical stirring kit optional)
• Continuous working time: ≥15 hours
• Temperature control range: 0–300℃
• Temperature control accuracy: ±1℃
• Temperature test accuracy: ±0.2℃
• Power consumption: 0–1000 W, automatic stepless adjustment
• Power supply: standard 220 V, 50 Hz; optional 110 V, 60 Hz
• External dimensions: 520 × 760 × 670 mm
• Net weight: 35 kg
• Gross weight: 40–45 kg

Applications & options

• Typical applications: catalytic synthesis, organic synthesis, extraction, method development, pilot experiments and quality control in industrial laboratories.
• Available options: mechanical stirring kit, inert gas joint, customized power supply, additional reaction vessel adapters.
• Delivery and support: factory direct supply with standard delivery within 7 days; after-sales service and spare parts available.
