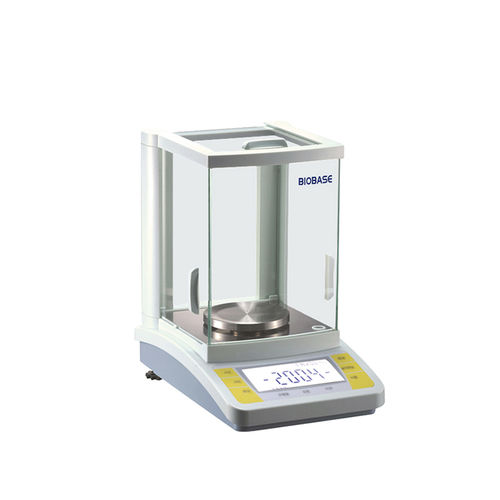

Analytical laboratory balance BA-B

for laboratorybenchtopwith LCD display

Introduction:
The BA-B Series Automatic Electronic Analytical Balance is a high-precision laboratory instrument for accurate measurement of small masses in laboratory, industrial and research environments.

Key product information:

• Manufacturer: BIOBASE
• Models: BA504B, BA604B, BA1004B, BA1104B, BA1204B, BA1604B, BA2004B, BA2104B, BA2204B, BA2104S
• Capacity range: 0~50g up to 0~220g (model-dependent)

Features:

• Five-side full-transparent windshield for reduced air disturbance during weighing.
• New-generation electromagnetic weighing sensor for high precision.
• Application programs include automatic fault detection, four-point linear calibration and overload protection.
• Ultra-large LCD for improved readability.

Functions:

• Counting, unit conversion (g, carat, troy oz, etc.), stability indication, full-scale taring, zero-memory.
• Built-in RS232C output for direct connection to PC or printer.
• Integrated lower weighing hook for auxiliary weighing.

Power Supply:
AC 110–220V, 50–60Hz; power cord supplied (no battery).

Standard accessories:

• Balance body
• Weighing pan
• Adaptor
• Standard weights
• Dust guard
• Cleaning cloth
• Tweezers and brush

Technical parameters:
Models: BA504B | BA604B | BA1004B | BA1104B | BA1204B | BA1604B | BA2004B | BA2104B | BA2204B | BA2104S
Capacity: 0~50g | 0~60g | 0~100g | 0~110g | 0~120g | 0~160g | 0~200g | 0~210g | 0~220g | 0~60/60~210g
Readability: 0.1 mg (BA504B–BA2204B); 0.1 mg / 1 mg (BA2104S)
Pan diameter: Φ90 mm (all models)
Stabilization time: 4s (select models) / 6s / 6–8s (model dependent)
Repeatability: 0.2 mg (typ.) / 0.3 mg (some models) / 0.2 mg/1 mg (BA2104S)
Linearity: 0.2 mg or 0.3 mg depending on model
Net weight: 6.8 kg; Gross weight: 9 kg
External dimensions (W×D×H): 350 × 215 × 340 mm; Package: 480 × 375 × 515 mm
Work space height: 240 mm
Calibration: External calibration (all models)

Characteristics / technical specifications:

• Series: BA-B Series Electronic Analytical Balance (external calibration)
• High-precision electromagnetic sensor and multi-function application software suitable for laboratory and industrial analysis
• Suitable for applications requiring 0.1 mg readability and capacities up to 220 g
• Interfaces and accessories provided for integration into laboratory systems
