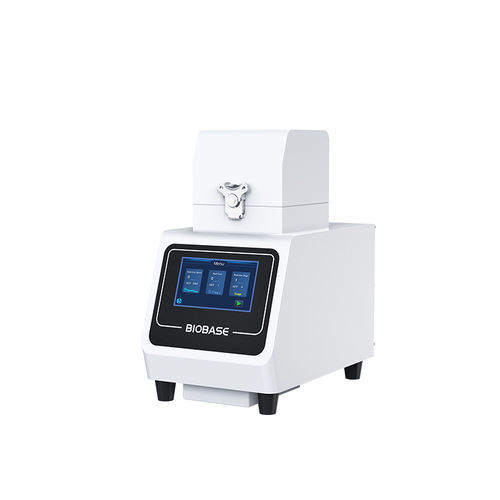

Oscillating homogenizer BHY2

verticalsample preparationfor research

Introduction
Tissue Grinding Machine BHY2 is designed to grind, disrupt and homogenize biological and material samples to enable extraction and purification of DNA, RNA and proteins. It supports dry, wet and low-temperature grinding and completes sample processing in short cycles while minimizing cross-contamination.

Key Information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BHY2

Features

• Standard capacity: up to 24 samples processed in as little as 1 minute (standard adaptor).
• Fully enclosed grinding chamber; samples move independently to avoid cross-contamination.

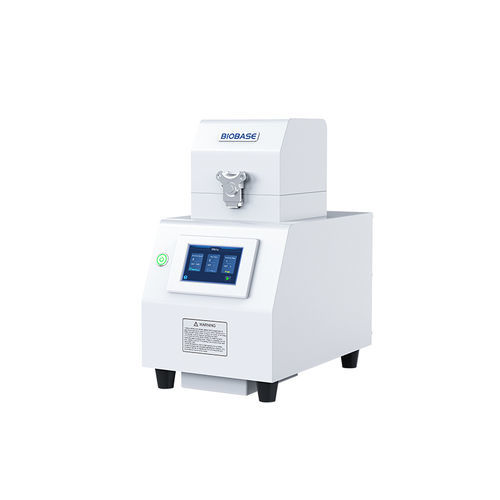

• Upgraded dual-slide vertical oscillation mechanism for more thorough grinding, improved stability and extended service life; BHY1 uses wear-resistant graphite bush design.
• Supports direct insertion of centrifuge tubes into adaptors and pre-freezing of tubes for low-temperature workflows.
• Designed for low-noise operation to reduce interference in the laboratory environment.

Applicable Samples

• Animal tissues: brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph nodes, muscle, bone, hair, etc.
• Volatile/heterogeneous samples: coal, oil shale, wax products, etc.
• Plant tissues: roots, stems, leaves, flowers, fruits, seeds, etc.
• Microorganisms: yeast, E. coli and similar microbes.
• Food samples: various food matrices.
• Plastics and polymers: PE, PS, textiles, resins, etc.
• Environmental samples: soil, sediment, sludge, feces, etc.

Technical Parameters
Model: BHY2
Display: 7-inch OLED touch screen
Oscillation Mode: Up-and-down vertical oscillation
Grinding Speed: 500–2300 rpm
Grinding Methods: Dry grinding / Wet grinding / Low-temperature grinding
Grinding Time: Each segment 0–120 s, multi-segment programming supported
Programming: Multi-stage operation setup; automatically records last-operation parameters
Safety Lock: Mechanical butterfly safety lock + door-controlled electronic operation limit
Adaptor Material: Aluminum alloy
Standard Adaptor Capacity: 24×2 ml
Optional Adaptors (customizable): 96×2 ml / 48×2 ml / 32×2 ml / 16×5 ml / 8×10 ml / 2×15 ml / 2×25 ml / 2×50 ml
Not suitable for low-temperature grinding: 96×2 ml / 48×2 ml
Grinding Balls (standard): Stainless steel φ3 mm ×800 and φ5 mm ×200
Power Consumption: 180 W
Power Supply: AC 110–220 V, 50/60 Hz
External Size (W×D×H): 265×405×520 mm
Package Size (W×D×H): 375×530×670 mm
Net Weight: 29 kg
Gross Weight: 41 kg

Notes
1. Low-temperature grinding refers to adapters that can be pre-cooled in a low-temperature freezer or liquid nitrogen container and then used; the instrument itself does not include an internal freezing function.
2. If 2×50 ml adaptors are purchased, a set of grinding balls is included as standard: φ8 mm×40, φ10 mm×40, φ12 mm×20 and φ14 mm×20.

Specifications

• Model: BHY2
• Display: 7-inch OLED touch screen
• Oscillation Mode: Vertical (up-down) dual-slide mechanism
• Grinding Speed: 500–2300 rpm
• Grinding Modes: Dry, wet, low-temperature
• Standard Capacity: 24×2 ml (optional adaptors available)
• Power Consumption: 180 W; Power Supply: AC 110–220 V, 50/60 Hz
• Dimensions (W×D×H): 265×405×520 mm
• Net/Gross Weight: 29 kg / 41 kg
