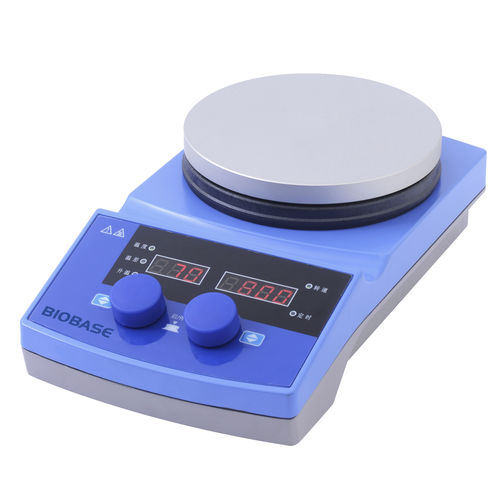

Magnetic laboratory mixer MYP11-2analogdigitalfor the pharmaceutical industry
Add to favorites
Compare this product
Characteristics
- Type
- magnetic
- Display
- digital, analog
- Applications
- for the pharmaceutical industry, for research, for teaching, quality control
- Configuration
- benchtop
- Other characteristics
- variable-speed, hotplate, heating
- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Temperature range
Max.: 320 °C
(608 °F)Min.: 20 °C
(68 °F)
Description
Overview
The BIOBASE Hotplate Magnetic Stirrer MYP series provides combined heating and magnetic stirring for laboratory use. Designed for controlled heating and reproducible stirring, the range supports applications in R&D, quality control and routine laboratory workflows.
Key information
Technical parameters (summary)
Features / Applications
Technical specifications
The BIOBASE Hotplate Magnetic Stirrer MYP series provides combined heating and magnetic stirring for laboratory use. Designed for controlled heating and reproducible stirring, the range supports applications in R&D, quality control and routine laboratory workflows.
Key information
- Brand: BIOBASE
- Product origin: CHINA
- Delivery time: Within 7 days
- Supply capacity: Factory direct supply
- Models:
- MYP11-2
- MYP11-2A
- SH05-3G
- X85-2
- X85-2S
Technical parameters (summary)
- Work plate size: φ145 mm (most models), φ175 mm (SH05-3G)
- Work plate material: Aluminum alloy (most), Stainless steel (SH05-3G)
- Max stirring capacity: 5 L (typical), 10 L (SH05-3G)
- Motor type: Brushless DC motor
- Motor output: 15 W (MYP11-2/MYP11-2A/SH05-3G), 10 W (X85-2/X85-2S)
- Speed range: 0–1500 rpm
- Heating output: 600 W (most models), 800 W (SH05-3G)
- Heating temperature range: RT–320°C (MYP11-2 / MYP11-2A), RT–250°C (SH05-3G), 50–300°C (X85 series)
- Power supply: Standard AC220V 50/60Hz (optional AC110V for some models)
Features / Applications
- Combined hotplate heating and magnetic stirring for sample dissolution, mixing and controlled heating.
- Brushless DC motor for stable, long-term operation.
- Wide speed range up to 1500 rpm to cover common laboratory mixing needs.
- Selected models include digital display for speed, temperature and time; control types: button, knob, or knob+button.
- Multiple plate materials and sizes to match chemical compatibility and sample volume requirements.
- Suitable for chemistry, biology, pharmaceutical labs, teaching and QC processes.
Technical specifications
- Speed range: 0–1500 rpm (all models)
- Temperature accuracy: ±0.5°C (MYP11-2 / MYP11-2A), ±1°C (SH05-3G)
- Timing range: 1–9999 min (MYP11-2 / MYP11-2A), 1–250 min (SH05-3G)
- External dimensions and package sizes: see model-specific data (e.g. 280×160×90 mm for MYP11-2)
- Gross weight: 4.5–7 kg depending on model
- Typical heating outputs: 600 W / 800 W
