Aerosol generator for the pharmaceutical industry BAG-6D

laboratorymedicalnot specified

Introduction

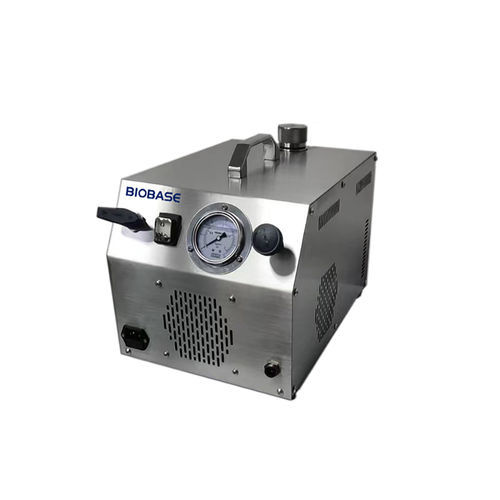

The BAG-6D is a cold-type aerosol generator designed for HEPA/ULPA filter testing and cleanroom validation. The enclosure, regulating valve and transfer valve are stainless steel; the pressure gauge is an oil-filled seismic type. The unit includes a built-in oil-less air compressor (external air supply optional). PAO or DOP is atomized through 2 or 6 Laskin nozzles to produce high concentration aerosol.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Model: BAG-6D
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply

Application

• Filter leak detection in pharmaceutical industry
• Clean rooms and laminar flow tables
• Biosafety cabinets and glove boxes
• HEPA vacuum cleaners
• HVAC system and HEPA/ULPA filter testing
• Negative pressure filter devices
• Operating rooms

Technical parameters

• Model: BAG-6D
• Available flow range: 50–2000 cfm (≈84–3400 m3/h)
• Concentration: 10 µg/L at 2000 cfm (≈3400 m3/h); 100 µg/L at 200 cfm (≈340 m3/h)
• Particle types: PAO, DEHS, DOP, polydispersed particles
• Qty. of Laskin nozzles: 2 pcs or 6 pcs
• Air supply: Built-in oil-less air compressor (external supply optional)
• Power (electrical): AC220V 50/60Hz standard; AC110V 60Hz optional (external transformer)
• External size (W×D×H): 260×240×385 mm
• Net weight: 27 kg; Gross weight: 30.5 kg
• Packed size (W×D×H): 440×580×430 mm

Notes
When operating at 20 psi (0.14 MPa) the use of DOP is not recommended.

Key features

• Stainless steel enclosure and valves for durability and cleanability
• Oil-filled seismic pressure gauge for stable readings
• Built-in oil-less compressor allows operation without external air source (external connection available)
• Selectable 2- or 6-nozzle Laskin configuration for adjustable aerosol output
