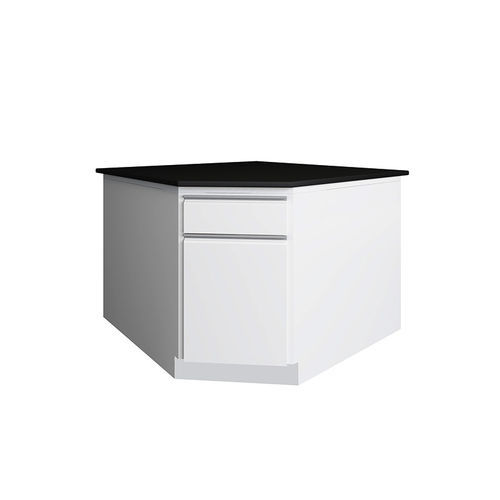

Chemical analysis laboratory bench

for analysismobileisland-type

Introduction
The steel laboratory bench is designed for hospitals, schools, chemical plants, research institutes and other professional laboratories for experimental tests and instrument storage. Depending on installation it is available as wall bench, island bench, corner bench or hanging cabinet.

Key information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply: Factory direct supply

Technical parameters

• Countertops: solid physical-chemical boards, epoxy resin, granite, ceramic, Trespa, stainless steel tops
• Cabinet body: constructed from 1.0–1.2 mm high-quality 304 stainless steel plate; integral bottom plate; detachable rear panel; available in mobile, hanging and floor-mounted types
• Door panels and drawer fronts: 1.0–1.2 mm first-grade 304 stainless steel, double-layer hollow reinforced structure

Accessories
Hinges: DTC brand hinges (110/175°) standard; optional 304 stainless hinge 2.0 mm thick; up to 255° opening. Slide rails: hidden steel-column slide rails with lower support; DTC three-stage 16" silent slides; stamped steel construction with paint finish; load capacity ~35 kg; double-piece sandwich design with anti-shake and self-closing end. Handles: integrated groove handle or stainless steel handle. Reagent shelf: steel-glass or aluminium-glass structure, customizable. Faucet: 1/2/3-mouth options; epoxy resin surface finish; ceramic spool; detachable cleaning block; soft-pressure effect. Sink: imported high-density PP material, molded, selectable sizes. Drip rack: PP integral molding, chemical-resistant, antibacterial, easy to clean; includes automatic clean-water reflux and diversion hole connected to sink for drainage. Wastewater system: high-density PP sinking bend, corrosion/acid/alkali resistant with filter and odor-blocking function.

Product size
Wall bench: Length × Width × Height: L × 750 × 800 mm (customizable). Island bench: Length × Width × Height: L × 1500 × 800 mm (customizable).

Features / Technical specifications

• Countertop options: physical-chemical boards, epoxy resin, granite, ceramic, Trespa, stainless steel
• Cabinet material: 304 stainless steel plate, thickness 1.0–1.2 mm; integral bottom plate; detachable back panel
• Doors/drawers: 304 stainless steel 1.0–1.2 mm, double-layer hollow reinforced
• Accessories: DTC hinges and silent slide rails; hidden steel-column slides supporting ~35 kg; integrated or stainless handles; configurable reagent shelves; 1–3 mouth faucets; PP sinks and drip racks; PP wastewater bend with filter
• Available installations: wall, island, corner, hanging; mobile/hanging/floor types
• Lead time: Within 7 days; Supply: Factory direct
