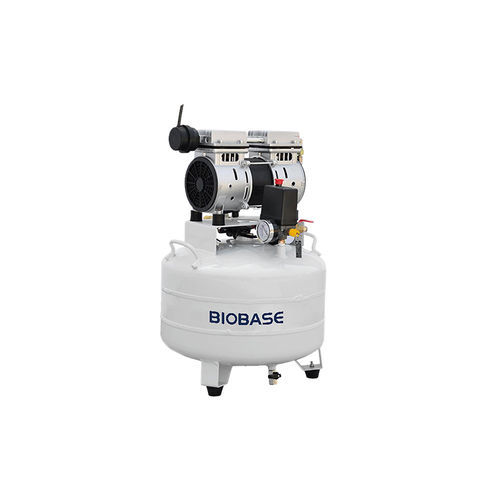

Medical compressor BKX-ZY series

dentalfor dental officesfor dental laboratories

Introduction
As the core device in dental diagnosis and treatment, the dental electric air compressor drives the compressor via an electric motor to generate high-pressure gas. It delivers stable, dry, and oil-free compressed air for dental chairs, ultrasonic scalers, air polishers, and other dental equipment, providing reliable support for routine treatments, surgical procedures, and instrument cleaning/disinfection.

Features

• Premium Imported Components: Adopts imported leather cups and valve plates, ensuring long-term stable operation and reduced maintenance frequency.
• High-Quality Core Configuration: Features pure copper air outlets for corrosion resistance and airtightness, paired with a high-performance motor for strong power output and low energy consumption.
• Intelligent Pressure Management: Equipped with precise pressure control technology and automatic start-stop function, maintaining constant pressure and avoiding energy waste.
• Customizable Expansion Options: Supports configuration upgrades based on customer needs, including soundproof enclosures, high-efficiency air drying systems, and multi-stage air filtration systems.

Technical Parameters
Model | BKX-ZY100 | BKX-ZY130 | BKX-ZY200 | BKX-ZY260
Number of Dental Chairs | 1 unit | 2 units | 3 units | 4 units
Maximum Air Output | 100L/min | 150L/min | 200L/min | 300L/min
Air Tank Capacity | 24L | 38L | 60L | 60L
Pressure Adjustment Range | 0.55~0.8MPa
Air Outlet | Φ8
Consumption | 550W | 750W | 550W*2 | 750W*2
Power Supply | AC220V, 50Hz(Standard); AC110V/220V, 60Hz(Optional)
External Size(W*D*H)mm | 450*450*580 | 450*450*750 | 750*420*680 | 750*420*720
Net Weight(kg) | 26 | 28 | 48 | 50
Packing Size(W*D*H)mm | 530*530*720 | 530*530*860 | 830*500*820 | 830*500*820
Gross Weight(kg) | 28 | 30 | 53 | 55

Model | BKX-ZY400 | BKX-ZYT600 | BKX-ZYT800 | BKX-ZYT1000
Number of Dental Chairs | 6~7 units | 8~9 units | 10~13 units | 13~15 units
Maximum Air Output | 400L/min | 600L/min | 800L/min | 1000L/min
Air Tank Capacity | 150L | 150L | 200L | 200L
Pressure Adjustment Range | 0.55~0.8MPa
Air Outlet | Φ10 (BKX-ZY400, BKX-ZYT600), Φ12 (BKX-ZYT800, BKX-ZYT1000)
Consumption | 750W*3 | 1100W*3 | 1100W*4 | 1100W*5
Power Supply | AC380V, 50Hz(Standard); AC110V/220V/380V, 60Hz(Optional); AC220V, 50Hz(Optional)
External Size(W*D*H)mm | 1350*430*850 | 1350*430*850 | 1730*430*850 | 1730*430*850
Net Weight(kg) | 86 | 110 | 142 | 160
Packing Size(W*D*H)mm | 1430*510*1020 | 1430*510*1020 | 1810*510*1020 | 1810*510*1020
Gross Weight(kg) | 106 | 135 | 167 | 185

Characteristics / Technical Specifications

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BKX-ZY100, BKX-ZY130, BKX-ZY200, BKX-ZY260, BKX-ZY400, BKX-ZYT600, BKX-ZYT800, BKX-ZYT1000
