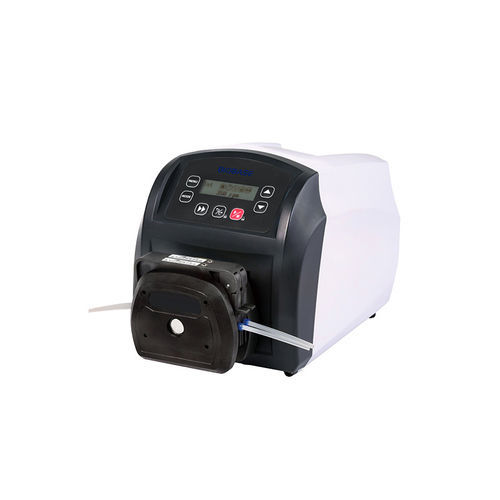

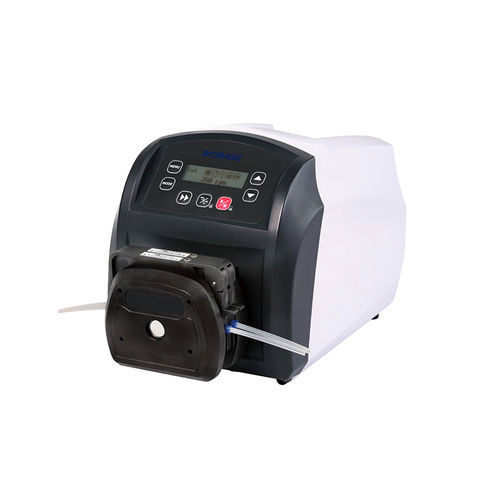

Compact laboratory peristaltic pump BT-S

for liquid dispensing

Introduction
The BT-S Series peristaltic pump is designed for applications requiring gentle, contamination‑free fluid transfer. Available driver models: BT101S, BT301S, BT601S. Standard hose length: 2 m.

Key features

• 128×32 LCD with Chinese/English switch, straightforward parameter setting and clear status display.
• Optional Lead Fluid APP for remote start/stop, speed control and timed operation; optional monitoring features (shutdown alarm, tubing replacement reminder).
• Delay start and delay stop functions; start/stop, reversible direction, full speed and adjustable speed with power‑down state memory.
• External analog speed control; external control signals can manage start/stop and forward/reverse with physical isolation; wide input range 5–24 V.
• External speed control signal type (voltage or current) selectable from control panel (0–5V standard; 0–10V / 4–20mA optional).
• RS485 communication interface, Modbus protocol supported; communication parameters configurable for integration with other equipment.
• Support for OEM/ODM parameter configuration; circuit board with conformal coating for dust and moisture protection.
• Wide input voltage range and strong interference immunity; ABS housing with compact dimensions.

Technical parameters
Model | BT101S | BT301S | BT601S
Flow range | 0.0001–720 ml/min | 0.005–1750 ml/min | 0.006–3000 ml/min
Rotation range | 0.1–150 rpm | 0.1–350 rpm | 0.1–600 rpm
Speed resolution | 0.1–100 rpm: 0.1 rpm; 100–600 rpm: 1 rpm
Speed accuracy | <±0.5%
Power supply | AC100–240V, 50/60Hz
Power consumption | <30W | <40W | <50W
External control | Digital input level 5V/12V standard, 24V optional; analog 0–5V standard, 0–10V or 4–20mA optional
Communication | RS485 (Modbus)
Working environment | Ambient temperature 0–40°C, RH <80%
Protection rating | IP31
Dimensions (L×W×H) | 261×180×197 mm
Drive weight | 4.5 kg | 4.7 kg | 4.9 kg
Packing size | 430×290×320 mm
Gross weight | 8 kg

Pump head
Multiple pump head types and roller configurations are supported to cover a wide flow range (single or multi‑channel heads available).

Applicable pump head, hose & flow parameters
Driver model / Pump head / Channels / Hose (wall/ID) / Single‑channel flow (ml/min)
BT101S — DG/DS (6 rollers) / 1,2,4 / wall 0.8–1 mm, ID ≤ 3.17 mm / 0.00016–49
BT101S — DG/DS (10 rollers) / 1,2,4 / wall 0.8–1 mm, ID ≤ 3.17 mm / 0.00011–32
BT101S — DT10‑18/28 / 1,2 / 13#14#, wall 0.8–1 mm, ID ≤ 3.17 mm / 0.00023–64
BT101S — YZ15T / 1,2 / hoses 13#14#19#16#25#17#18# / 0.005–641
BT101S — YT25 / 1 / hoses 114#116#15#24#35#36# / 0.024–750
BT301S — YZ15T / 1,2 / hoses 13#14#19#16#25#17#18# / 0.005–1495
BT301S — YT25 / 1 / hoses 114#116#15#24#35#36# / 0.024–1750
BT601S — YZ15T / 1,2 / hoses 13#14#19#16#25#17#18# / 0.005–2562
BT601S — YT25 / 1 / hoses 114#116#15#24#35#36# / 0.024–3000

Remark
Customers may select any hose model as standard configuration; standard hose length is 2 meters.

Specifications

• Brand: BIOBASE
• Series/Model: BT‑S Series (BT101S, BT301S, BT601S)
• Flow ranges: 0.0001–720 / 0.005–1750 / 0.006–3000 ml/min (by model)
• Rotation ranges: 0.1–150 / 0.1–350 / 0.1–600 rpm
• Speed resolution & accuracy: 0.1 rpm (0.1–100 rpm) / 1 rpm (100–600 rpm); accuracy <±0.5%
• Power: AC100–240V, 50/60Hz; consumption <30/40/50W
• External control: digital 5V/12V (std), 24V opt.; analog 0–5V (std), 0–10V or 4–20mA opt.
• Communication: RS485 (Modbus)
• Protection: IP31; operating 0–40°C, RH <80%
• Dimensions: 261×180×197 mm; packed gross weight 8 kg
• Standard hose length: 2 m
