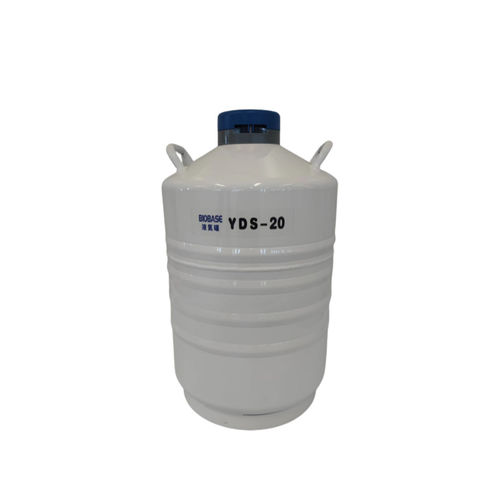

Biobank cryopreservation tank YDS series

for scientific research

Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply

Features

• High-strength, lightweight aluminum structure designed for static cryogenic storage
• Ultra-low static evaporation loss for prolonged storage periods
• Large-capacity straw storage compatible with standard cryo-straws
• Matching cryopreservation tube clamp for secure sample handling
• Optional safety locking cover to prevent unauthorized opening
• Optional liquid level monitoring system for inventory control
• Optional transport vehicle (trolley) for safe movement
• Optional self-pressurized liquid nitrogen pump for dispensing

Technical Parameters (table)
Model: YDS-10 | YDS-20
Capacity (L): 10 | 20
Net Weight (kg): 6.2 | 11.6
Caliber (mm): 50 | 50
Height (mm): 540 | 665
Static Evaporation Rate (L/d): 0.12 | 0.12
Static Shelf Life (d): 86 | 168
Lifting Drum Height (mm): 110/120 | 120/276
Lifting Drum Outer Diameter (mm): 36 | 36
Number of Lifting Drums (pc): 6 | 6
Optional Locking Cover: √ | √
Protective Case: √ | √

Characteristics / Technical specifications

• Model series: YDS (YDS-10, YDS-20)
• Capacity options: 10 L and 20 L
• Net weight: 6.2 kg (YDS-10), 11.6 kg (YDS-20)
• Neck diameter (caliber): 50 mm
• Static evaporation rate: approx. 0.12 L/day
• Estimated static storage duration: 86 days (YDS-10), 168 days (YDS-20)
• Lifting drum specifications: height and outer diameter per model as listed
• Typical packing: protective case included
• Available options: locking cover, liquid level monitoring, transport trolley, self-pressurized LN2 pump
