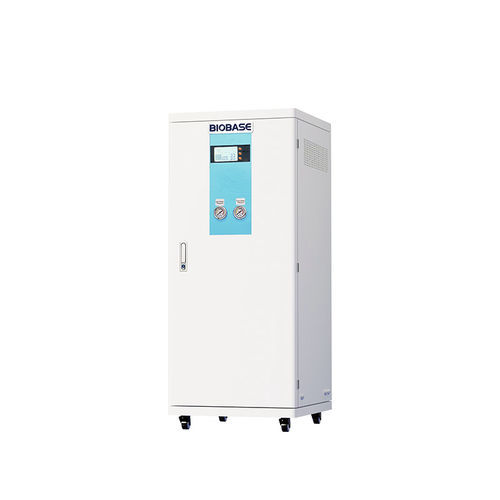

Laboratory water purifier BKX-CS series

for healthcare facilitiesfor dental clinicsreverse osmosis

Introduction
This dental water purifier is designed to remove impurities, bacteria and harmful substances from clinic water supplies, delivering purified, sterilized water suitable for dental procedures and instrument use.

Product information
Brand: BIOBASE
Origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BKX-CS05 / BKX-CS10

Features

• Fully automatic operation: automatic start/stop and integrated control for unattended operation.
• Automatic cleaning: reverse osmosis main unit includes automatic pulse flushing for maintenance.
• Multiple safety protections: water-free protection, pressure protection and self-locking safety devices.
• Multi-functional monitoring: real-time online display of water quality for continuous monitoring.
• Compact integrated design: small footprint with left/right service doors and easy pipeline interfaces for quick connection and consumable replacement.

Technical parameters
Model: BKX-CS05 | BKX-CS10
Supported dental chair quantity: BKX-CS05: 1–6 units | BKX-CS10: 1–10 units
Rated water production: BKX-CS05: ≥50 L/h | BKX-CS10: ≥90 L/h
Control method: Automatic integrated control
Inlet water pressure: 0.2–0.4 MPa
Treatment process: Purification + Refining + Storage + UV Sterilization + Constant pressure water supply
Power supply: AC220V, 50Hz (standard); AC220V, 60Hz (optional); AC110V, 50/60Hz (optional)
Power consumption: BKX-CS05: 380 W | BKX-CS10: 500 W
External size (W*D*H): BKX-CS05: 550*470*1000 mm | BKX-CS10: 590*547*1066 mm
Package size (W*D*H): BKX-CS05: 580*550*1080 mm | BKX-CS10: 670*627*1146 mm
Net weight: BKX-CS05: 40 kg | BKX-CS10: 50 kg
Gross weight: BKX-CS05: 50 kg | BKX-CS10: 60 kg

Specifications / Technical details

• Brand: BIOBASE
• Model: BKX-CS05; BKX-CS10 (BKX-CS series)
• Processing stages: Purification, refining, storage, UV sterilization, constant-pressure supply
• Safety: water-free protection, pressure protection, self-locking devices
• Operation: fully automatic with automatic pulse flushing for cleaning
• Power options: AC220V 50Hz standard; AC220V 60Hz or AC110V 50/60Hz optional
• Consumption and dimensions: see Technical parameters above

Applications

• Intended for dental clinics, dental laboratories and medical facilities requiring purified water for clinical use and instrument operation.
