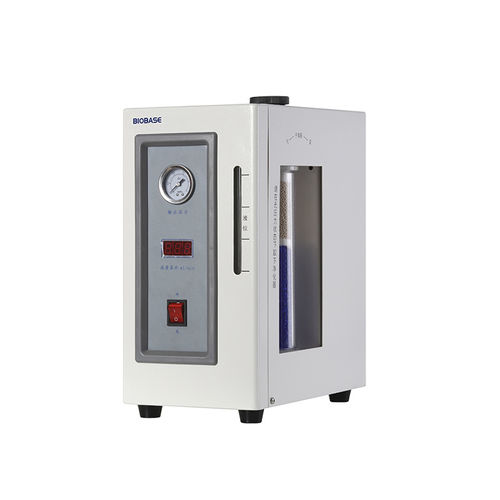

Hydrogen hydrogen generator HG series

ultra-high puritylaboratoryfor laboratory analyzers

Overview
This hydrogen generator produces high-purity hydrogen by water electrolysis (or equivalent chemical methods) for laboratory analysis, industrial gas supply and similar applications.

Key Information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: HG-300II / HG-500II

Features

• Simple operation: one-time alkali addition; daily maintenance requires only distilled water and power on/off to produce hydrogen.
• Air path made of stainless steel tubing with electrolytic polishing and ultrasonic cleaning; equipped with over-pressure protection and two-stage purification.
• Built-in anti-return device to prevent liquid backflow into the unit.
• Cartridge-type electrolytic tank using imported special precious-metal electrolytic materials to improve efficiency; constant cell temperature extends tank life.
• Stable output flow with automatic tracking; purity remains stable for continuous use.

Technical Parameters

• Model: HG-300II — HG-500II
• Output flow (ml/min): 0~300 — 0~500
• Output pressure: 0~0.5 MPa (factory setting 0.4 MPa)
• Purity: >99.999%
• Ambient temperature: 10~40°C
• Ambient humidity: ≤85%
• Power consumption: 220 W
• Power supply: AC220V±10%, 50Hz±5% (standard); AC110V, 60Hz (optional)
• Instrument size (W×D×H): 320×180×370 mm
• Package size (W×D×H): 390×250×460 mm
• Net weight: 10 kg
• Gross weight: 14 kg

Characteristics / Specifications

• Models available: HG-300II, HG-500II
• Output ranges: HG-300II = 0–300 ml/min; HG-500II = 0–500 ml/min
• Output pressure up to 0.5 MPa (factory default 0.4 MPa)
• Hydrogen purity >99.999%
• Continuous operation capability with stable purity
• Typical applications: laboratory analysis, industrial gas supply and related fields
