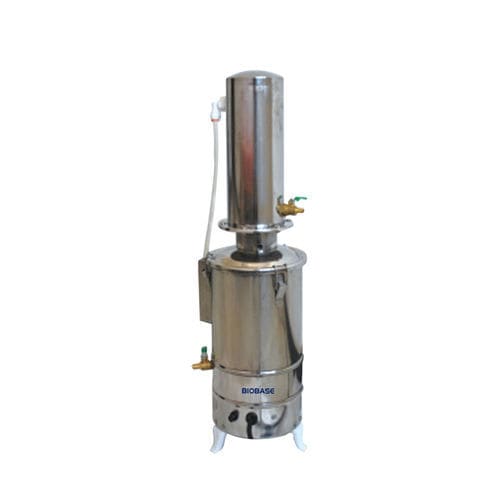

Laboratory water distiller WD-A

for the pharmaceutical industryautomatic

Introduction
Ensure a reliable supply of high-purity distilled water with the BIOBASE Auto-control Electric-heating Water Distiller WD-A series. Designed for laboratories, clinics and industrial applications, the WD-A provides automatic control, high-efficiency electric heating and built-in safety alarms for continuous, safe and clean distillation.

Key information

• Brand: BIOBASE
• Product origin: China
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: WD-A5, WD-A10, WD-A20

Features

• Stainless steel construction, manufactured by stamping and welding technology.
• Water shortage alarm and power-off protection.
• Power and heating indicators; water shortage display for safe operation monitoring.

Technical Parameters (table)
Model | WD-A5 | WD-A10 | WD-A20
Water Output | ≤5 L/H | ≤10 L/H | ≤20 L/H
Consumption | 5 kW | 7.5 kW | 15 kW
Power Supply | AC220V±10%, 50/60Hz (Standard); AC110V±10%, 50/60Hz (Optional) | AC380V±10%, 50/60Hz (Standard); AC220V±10%, 50/60Hz (Optional) | AC380V±10%, 50/60Hz (Standard); AC220V±10%, 50/60Hz (Optional)
External Size (φ*H) | 280×740 mm | 310×855 mm | 375×960 mm
Package Size (W*D*H) | 330×290×710 mm | 360×320×720 mm | 430×380×770 mm
Gross Weight | 8 kg | 8.5 kg | 13 kg

Characteristics / Technical specifications

• WD-A5: Water output ≤5 L/H; Consumption 5 kW; Power supply options: AC220V±10% 50/60Hz (standard), AC110V±10% 50/60Hz (optional); External size 280×740 mm; Package size 330×290×710 mm; Gross weight 8 kg.
• WD-A10: Water output ≤10 L/H; Consumption 7.5 kW; Power supply options: AC380V±10% 50/60Hz (standard), AC220V±10% 50/60Hz (optional); External size 310×855 mm; Package size 360×320×720 mm; Gross weight 8.5 kg.
• WD-A20: Water output ≤20 L/H; Consumption 15 kW; Power supply options: AC380V±10% 50/60Hz (standard), AC220V±10% 50/60Hz (optional); External size 375×960 mm; Package size 430×380×770 mm; Gross weight 13 kg.
