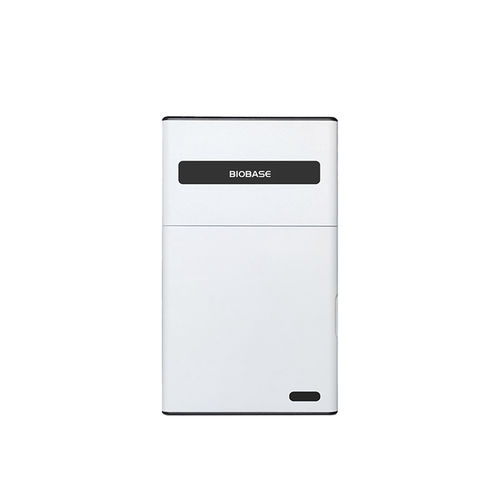

Chemiluminescence gel documentation system BK-ACG series

fluorescencecolorimetricUV fluorescence

Overview
BIOBASE. Automatic chemiluminescence gel imaging system for documentation and analysis of nucleic acid and protein gels. Models: BK-ACG600 / BK-ACG900. Origin: CHINA. Delivery: within 7 days. Factory direct supply.

Applications

• Nucleic acid detection: EB, SYBRGold, SYBRGreen, SYBRSafe, GelRed, GelGreen, Fluorescein.
• Protein analysis: silver staining, SDS-PAGE, visible-light imaging.
• Chemiluminescence detection: Western blot (Western Lightning, ECL, ECLplus) and other luminescent assays.

Key features

• Fully automatic control of lens and light source for reproducible captures.
• Automatic exposure calculation with wide range (1 ms–60 min); reduces manual adjustments.
• One-button capture and automatic stacking of marker and chemiluminescence images.
• Ultrasensitive cooled CCD camera with high quantum efficiency and wide-aperture lens options.

Technical specifications (summary)
Model: BK-ACG600 / BK-ACG900
Camera resolution: 9.0 MP / 12.0 MP
Cooling temperature: - / 65 ℃
Photosensitive efficiency: 95% / 95%
Pixel size: 3.75 × 3.75 μm / 4.63 × 4.63 μm
Exposure time: 1 ms ~ 60 min
Pixel depth: 16 Bits (0 ~ 65535)
Optical density (OD): ≥4.8 OD
Lens: Standard F=0.95, 25 mm; Optional F=0.8, 25 mm
UV transmission: 302 nm
White light reflection: LED reflection (cold light)
Filter: Standard 590 nm (other options available)
Shooting area: 32 × 26 cm
Timer shut down: 1 ~ 60 min
Power supply: 100 ~ 240 V, 50/60 Hz
Packing size: 490 × 515 × 845 mm
Gross weight: 40 kg

Notes
System supports multiple nucleic acid dyes, protein staining methods and chemiluminescence modes. Designed for laboratory workflows requiring sensitive, reproducible gel documentation and quantitative image capture.
