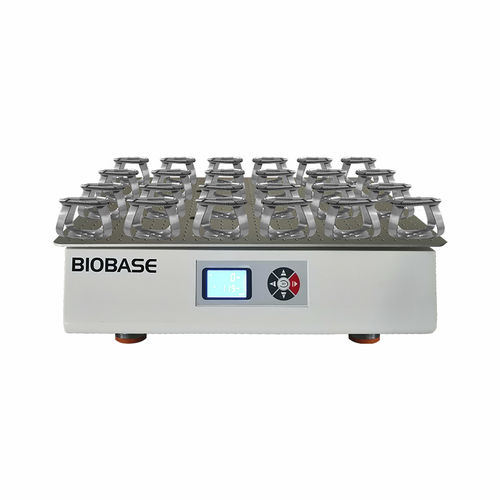

Rotary laboratory shaker BJPX-SZ series

orbitaldigitalfor the pharmaceutical industry

Overview
The Table-top orbital shaker BJPX-SZ10 / BJPX-SZ11 is a compact laboratory instrument for mixing, blending and agitating samples in tubes, flasks and microplates with controlled speed and amplitude.

Product data
Brand: BIOBASE
Product origin: China
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BJPX-SZ10 / BJPX-SZ11

Key features

• Microprocessor controller with audible and visual alarm.
• LCD display showing set and measured parameters for straightforward operation.
• Run-parameter memory and power-off resume to restore the previous program after power loss.
• DC brushless motor for long service life and low maintenance.
• Acceleration control circuit for soft start and smooth acceleration to protect samples.
• Single-axis balanced drive with fixed-value speed control and multiple clamp options for flasks, tubes and 96-well plates.

Technical specifications
Model: BJPX-SZ10 / BJPX-SZ11
Oscillation mode: Rotatory shaking (orbital)
Speed range: 30–300 rpm
Speed accuracy: ±1 rpm
Amplitude: 26 mm (BJPX-SZ10) / 50 mm (BJPX-SZ11)
Display: LCD
Timing range: 0–9999 min/hour
Tray size: 680 × 500 mm
Tray number: 1 pc
Flask clamp (default / standard / max capacities): Default 250 ml × 24; Standard options: 24×250 ml / 18×500 ml / 14×1000 ml / 7×2000 ml (select one); Max: 35×250 ml / 24×500 ml / 20×1000 ml / 12×2000 ml
Drive mode: Single-axis balanced drive type
Curve programming: Fixed-value speed control
Ambient temperature: 15–35 ℃
Consumption: 80 W
Power supply: AC100–240 V, 50/60 Hz
External size (W×D×H): 680×570×290 mm (BJPX-SZ10) / 690×570×300 mm (BJPX-SZ11)
Net weight: 76.5 kg (BJPX-SZ10) / 95.5 kg (BJPX-SZ11)
Package size (W×D×H): 700×760×470 mm
Gross weight: 101 kg (BJPX-SZ10) / 117.5 kg (BJPX-SZ11)

Optional clamps and accessories
Triangular beaker max capacity (pcs): 100 ml - 48; 250 ml - 35; 500 ml - 24; 1000 ml - 20; 2000 ml - 12; 3000 ml - 8
Tube rack: 4 pcs
96-well plates: 18 pcs

Applications

• Routine mixing and agitation in research and QC laboratories
• Sample preparation in pharmaceutical, biotech and academic labs
• Compatibility with flasks, tubes and microplates for diverse workflows
