Magnetic laboratory stirrer MS series

digitalclinicalbenchtop

Introduction

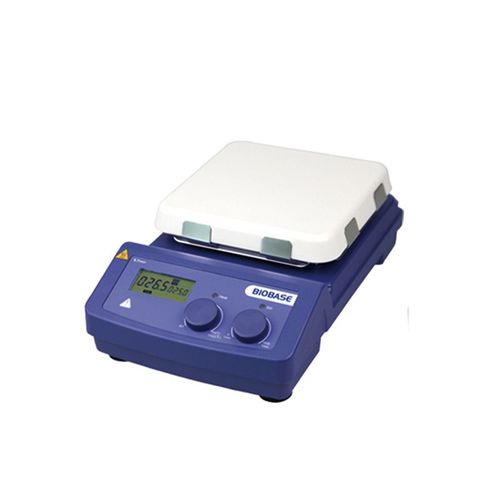

The Hotplate Magnetic Stirrer MS Series from BIOBASE combines controlled heating and magnetic stirring for laboratory sample preparation, synthesis and routine heating tasks in R&D, quality control and process labs.

Applications

• Chemical synthesis, sample digestion and evaporation
• Analytical sample preparation in QC and research laboratories
• Heating and stirring of solutions for titration, dissolution and small-scale reactions

Key technical overview

• Brand: BIOBASE
• Series: MS Series — models: MS7-H550-Pro, MS7-H550-S, MS-H-ProA, MS-H-Prot, MS-H-S, MS-H280-Pro
• Work plate sizes: 184×184 mm (7") or φ135 mm (5") depending on model
• Work plate materials: glass ceramic, aluminum or stainless steel with ceramic coating (model dependent)
• Max stirring capacity: up to 20 L (model dependent)
• Motor types: brushless DC or shaded pole; speed ranges from 0/100 rpm up to 1500 rpm (model dependent)
• Heating output: 500–1000 W depending on model; temperature ranges up to 550°C / 340°C / 280°C as specified per model
• Temperature control accuracy: typically ±1°C (<100°C) or ±1% (>100°C) on supported models; display accuracy down to ±0.1°C on precision models
• Protection ratings: IP21 or IP42 (model dependent); overheating protection thresholds vary by model
• Interfaces and features: RS232 on selected models, residual heat warning, timing on selected models
• Power supply: AC110/220V ±10%, 50/60Hz (customizable)

Options & accessories

• Optional PT1000 temperature probe (accuracy ±0.2°C) available for supported models
• Model-specific accessories: stirrer bars (max length 50–80 mm), RS232 cable, customized power configuration
• Spare parts and service available from BIOBASE factory supply

Ordering & support

• Delivery time: typically within 7 days for standard configurations; factory direct supply
• Customization: power supply and optional probes/interface can be specified at order
• Documentation: downloadable datasheet available; contact supplier for certificates, OEM packing and volume quotes
