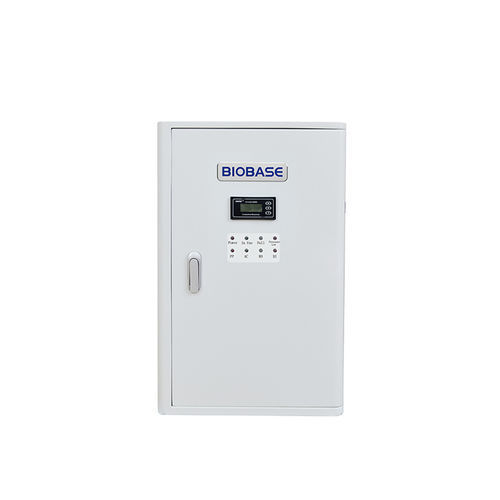

Laboratory water purification system SCSJ-II series

for chromatographyfor healthcare facilitiesfor laboratory analyzers

Introduction
The Laboratory Water Purifier (SCSJ-II series) is a system designed to produce ultra-pure water for critical applications in research, chemical analysis and clinical laboratories.

Product information

• Brand: BIOBASE
• Origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct
• Models: SCSJ-II-20L, SCSJ-II-30L, SCSJ-II-40L

Features

• Nano RO membrane for efficient fine-particle removal
• Fully automatic control with one-key start for straightforward operation
• High- and low-pressure protection and consumable replacement alarm
• Complies with national standard GB/T6682-2008 for water requirements
• LCD display showing water quality information

Purification procedure
PF + AC + RO + DI

Technical parameters
Model: SCSJ-II-20L | SCSJ-II-30L | SCSJ-II-40L
Water outlets: RO water outlet ×1; DI water outlet ×1
Output flow: 20 L/h | 30 L/h | 40 L/h
DI water quality: Resistivity 10–18.25 MΩ·cm; Conductivity 0.055–0.1 μS/cm; Heavy metal <0.1 ppb; Particles <1/ml; Bacteria <0.1 cfu/ml
RO water performance: Ion rejection 96%–99%; Organic rejection >99%; Particle & bacteria rejection >99%
Flow indicator: 1750 ml/min
Power consumption: 113 W
Power supply: AC220V 50Hz; 110V 60Hz (standard). Other options available
Standard configuration: Main unit, 40 L tank, accessory pack
Instrument dimensions (W×D×H): 403×325×650 mm; Gross weight: 40 kg

Characteristics / technical specifications

• Series: SCSJ-II (20L / 30L / 40L)
• Available flows: 20, 30, 40 L/h
• Purification stages: PF (PP) + AC (activated carbon) + RO + DI
• Main components: 10" PP filter ×1, 10" active carbon filter ×1, 300GPD RO membrane ×1, DI purification column ×1
• Operating water supply: Inlet pressure 0.1–0.3 MPa; feed water quality meeting GB5749; feed temperature 5–45 °C
• Operating environment: 15–35 °C; Relative humidity ≤ 80%
• Use cases: Research labs, analytical labs, clinical laboratories
