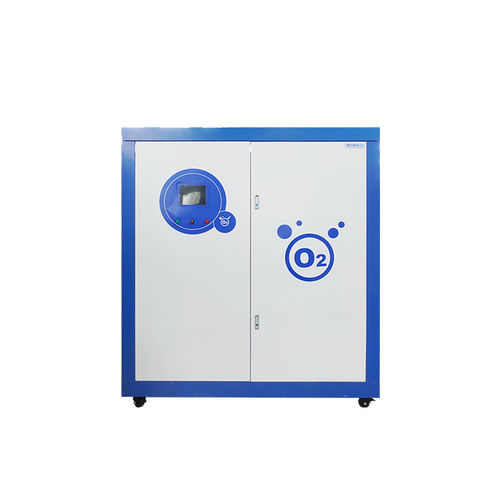

Medical oxygen generator BSZY series

on sitecompactPSA

Introduction
The integrated medical molecular sieve oxygen production system uses molecular sieve adsorbents with pressure swing adsorption (PSA) technology to extract oxygen from air and provide a continuous medical oxygen supply suitable for clinical environments.

Product information
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BSZY-3, BSZY-6, BSZY-10

Applications

• Medical oxygen supply for hospitals, clinics and outpatient centers
• Emergency units, recovery rooms and medical laboratories

Features

• Integrated assembly design for simplified on-site installation and commissioning, including zero-pressure start capability
• Professional oxygen filtration system to ensure consistent filtration performance
• Precision gas mass flow controller for real-time measurement and control of oxygen flow
• 10-inch color HMI for automatic control and straightforward operation

Technical Parameters (table)
Model | BSZY-3 | BSZY-6 | BSZY-10
Oxygen Supply Flow (m³/h) | 3.0 | 6.0 | 10.0
Oxygen Concentration | ≥90%
Oxygen Outlet Pressure | 0.2~0.5MPa adjustable
Consumption (KW) | 9 | 13 | 25
Power Supply | AC380V, 50Hz; Three-phase AC220V, 50Hz (Optional)
Noise | ≤85dB(A)
Operating Temp. | 5~40℃
Environmental Humidity | ≤80%
External Size (mm) | 1900*1380*1945 | 1900*1430*1945 | 2100*1530*2115
Package Size (mm) | 2070*1520*2100 | 2070*1570*2100 | 2270*1670*2270
Net/Gross Weight (kg) | 960/1120 | 1030/1200 | 1300/1500

Specifications

• Models: BSZY-3, BSZY-6, BSZY-10 (BSZY series)
• Oxygen supply flow: 3.0 / 6.0 / 10.0 m³/h
• Oxygen concentration: ≥90%
• Adjustable outlet pressure: 0.2–0.5 MPa
• Power consumption: 9 / 13 / 25 kW
• Noise level ≤85 dB(A); operating temperature 5–40℃; humidity ≤80%
• Dimensions and weights per model listed above
