Ultrasonic laboratory bath UC series

single-phaseprogrammableultrasonic

Introduction

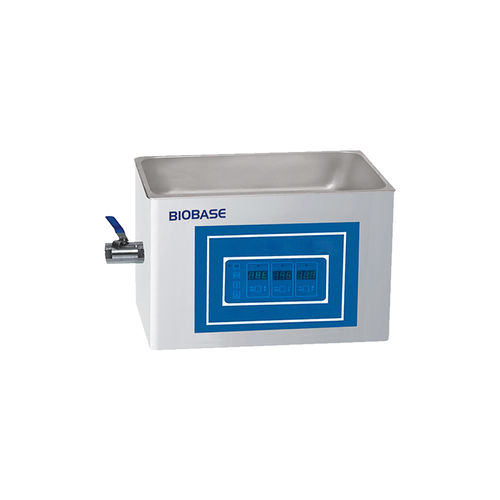

The BIOBASE UC series single-frequency ultrasonic cleaner is designed for controlled cleaning tasks in laboratories and light industrial environments. It uses ultrasonic cavitation combined with an appropriate cleaning solvent to remove contaminants from parts and components.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Available models: UC-08A, UC-10A, UC-20A, UC-50A, UC-70A, UC-10S, UC-20S, UC-20SII, UC-30S, UC-30SII, UC-50S, UC-60S, UC-70S

Key features

• Single-frequency operation: A-series 40 kHz, S-series 80 kHz.
• Digital display with real-time time and temperature readout; fully microprocessor-controlled and programmable.
• Standard accessories: 1 basket and 1 lid included.
• Low-level water protection on specified S-series models (UC-20S, UC-20SII, UC-30S, UC-30SII, UC-50S, UC-60S, UC-70S).
• Standard power supply: AC220V±10% 50/60Hz; 110V±10% 60Hz available for most models (exceptions apply: UC-10S, UC-20S, UC-20SII).

Technical parameters
Model | Capacity (L) | Ultrasonic Frequency | Time Range/Heating Temp | Ultrasonic Power (W) | Heating Power (W) | Tank Size L*W*H (mm) | Packing Size L*W*H (mm) | Gross Weight (kg)
UC-08A | 1.3 | 40KHz | 1~99min / 20~80°C | 60 | 200 | 150*140*65 | 260*260*260 | 2.5
UC-10A | 2 | 40KHz | 1~99min / 20~80°C | 60 | 200 | 150*140*100 | 260*260*290 | 3
UC-20A | 3 | 40KHz | 1~99min / 20~80°C | 120 | 200 | 240*135*100 | 350*260*330 | 4
UC-50A | 14 | 40KHz | 1~99min / 20~80°C | 300 | 400 | 300*240*200 | 430*370*430 | 9
UC-70A | 19 | 40KHz | 1~99min / 20~80°C | 420 | 600 | 330*300*200 | 460*430*430 | 11
UC-10S | 4 | 80KHz | 1~480min / RT~80°C | 100 | 400 | 300*150*100 | 445*250*400 | 8.5
UC-20S | 6 | 80KHz | 1~480min / RT~80°C | 200 | 400 | 300*150*150 | 435*240*430 | 8.8
UC-20SII | 8 | 80KHz | 1~480min / RT~80°C | 200 | 400 | 300*150*180 | 505*355*495 | 13
UC-30S | 10 | 80KHz | 1~480min / RT~80°C | 300 | 400 | 300*240*150 | 446*346*463 | 12.1
UC-30SII | 13 | 80KHz | 1~480min / 0~80°C | 300 | 400 | 300*240*180 | 840*670*730 | 75
UC-50S | 27 | 80KHz | 1~480min / 0~80°C | 500 | 800 | 500*300*180 | 1100*690*820 | 99
UC-60S | 27 | 80KHz | 1~480min / 0~80°C | 600 | 800 | 500*300*180 | 1100*690*820 | 101
UC-70S | 27 | 80KHz | 1~480min / 0~80°C | 700 | 800 | 500*300*180 | 1100*690*820 | 101

Applications

• Laboratory cleaning of glassware, instruments and small assemblies.
• Industrial parts cleaning: small machined parts, fasteners, precision components.
• Electronics: PCB, connectors and assemblies (use appropriate solvents and process controls).
• Jewellery, optical and watch components requiring controlled, repeatable cleaning cycles.

Accessories & ordering

• Standard supply includes basket and lid; optional accessories and spare parts available on request.
• Please specify model, voltage option and required accessories when ordering.
• Contact BIOBASE sales for factory-direct quotes and lead times.
