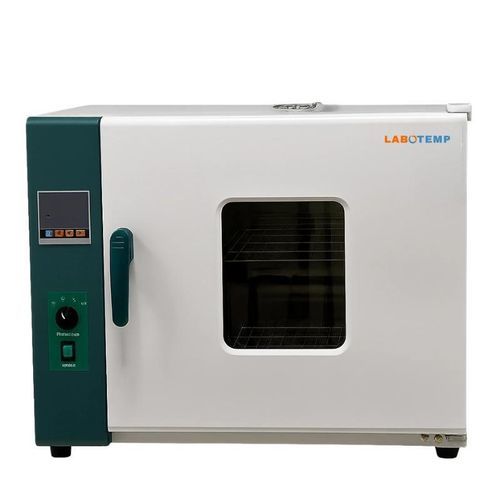

Hot air incubator drying oven FOV-02

forced convectionforced airdry

Overview
Labotemp FOV-02 is a forced-air drying oven designed for controlled heating, drying and thermal processing in research laboratories, industrial facilities and quality-control departments. The 72 L chamber and temperature range RT+10 to 300 °C support routine analytical tasks and industrial drying processes requiring accurate temperature control and uniform heat distribution.

Construction and control
The cabinet features a cold-rolled steel exterior with a spray-coated finish and a stainless steel inner chamber for chemical and corrosion resistance. Temperature is managed by a PID digital controller with 0.1 °C resolution and ±1 °C stability. Forced-air circulation with an adjustable low-noise fan ensures uniform temperature throughout the chamber. Designed to meet ISO and CE requirements for laboratory and industrial use.

Key benefits

• Accurate temperature regulation: PID control with 0.1 °C resolution and tight stability for reproducible thermal processing.
• Uniform drying: forced hot-air circulation improves temperature homogeneity and process consistency.
• Suitable for industrial environments: stainless steel chamber and durable cabinet construction for regular laboratory and production use.

Features

• Forced-air circulation system.
• Cold-rolled steel body with spray-coated finish.
• Stainless steel inner chamber.
• PID digital controller with alarm and timer functions.
• Double-layer glass viewing window.
• Heat-resistant silicone sealing strip.
• Low-noise, speed-adjustable fan for airflow control.

Applications

• Material testing and characterization under controlled temperature.
• Sample preparation and conditioning.
• Drying of components and assemblies at controlled temperatures.
• Drying, baking, sterilization and heat treatment in laboratories, research institutes and pharmaceutical, chemical and electronics industries.

Specifications
Temperature Control Range : RT+10°C ~ 300°C
Capacity : 72 L
Power : 1500 W
Temperature Resolution : 0.1 °C
Temperature Fluctuation : ±1 °C
Power Supply : 220V 50Hz
Overall Dimensions : 520 × 760 × 630 mm
Package Size : 565 × 805 × 705 mm
Net Weight / Gross Weight : 41 kg / 47 kg
Inner (chamber) Size : 350 × 450 × 450 mm

Technical specifications

• Model: FOV-02
• Chamber volume: 72 L
• Temperature range: RT+10 °C to 300 °C
• Power rating: 1500 W
• Controller: PID digital controller with alarm and timer
• Construction: cold-rolled steel exterior (spray-coated), stainless steel inner chamber
• Air circulation: forced hot-air with adjustable fan speed, low-noise fan
• Viewing: double-layer glass window
• Sealing: silicone sealing strip
• Certifications: ISO and CE compliance
