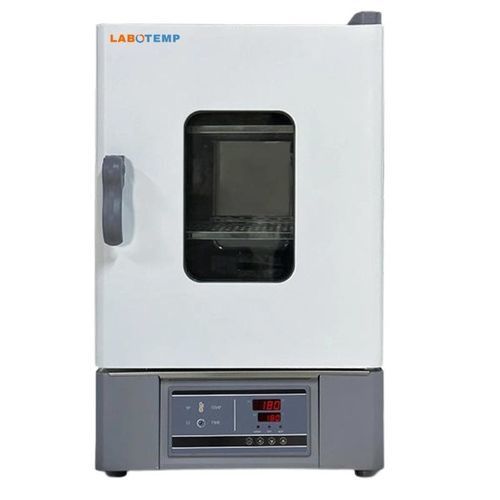

Preheating oven FOV-10

curingagingheating

Product overview
Labotemp FOV-10 is a forced‑convection laboratory drying oven designed for controlled heating, drying and thermal treatment in research labs, production lines and quality control environments. The unit features a 230 L chamber and a working range from RT+10 to 300 °C, offering uniform airflow and stable temperature control for batch drying, glassware drying, wax melting, sample conditioning and heat‑treatment tasks.

Design and safety
The oven has a mirror‑finish stainless steel interior and a cold‑rolled steel exterior with a chemical‑resistant coating for corrosion resistance and easy cleaning. Silica‑fiber insulation, a constant‑speed fan and a dual‑channel forced convection air system with rear/vertical duct ensure even heat distribution. Safety and control features include Pt100 sensing, programmable PID control, deviation correction, over‑temperature protection and menu locking for repeatable, secure operation.

Applications

• Drying and pre‑heating glassware and laboratory tools
• Dry sterilization of instruments in non‑moist environments
• Curing and heat‑treatment of samples and materials
• Thermal stability, aging and evaporation tests
• Wax melting and material conditioning

Key features

• 230 L chamber for efficient batch processing and testing
• Dual‑channel forced convection with rear/vertical duct for uniform circulation
• Programmable PID controller: up to 50 programs × 50 steps
• Mirror stainless steel interior for corrosion resistance and easy cleaning
• Cold‑rolled exterior with chemical‑resistant coating
• Silica fiber insulation and constant‑speed fan
• Adjustable multi‑layer shelves (17 positions, 2 standard layers)
• Integrated safety devices: anti‑temperature rise and over‑temperature protection

Technical specifications

• Maximum Temperature: 300 °C
• Temperature Control Range: RT+10 to 300 °C
• Chamber Volume: 230 L
• Power Rating: 3.0 kW
• Temperature Distribution Accuracy: ±2.0 %
• Temperature Fluctuation: ±1.0 °C
• Temperature Resolution: 0.1 °C
• Timer Range: 0–9999 minutes
• Program Control: Up to 50 programs × 50 steps
• Interior Material: Mirror stainless steel
• Exterior Material: Cold‑rolled plate with chemical‑resistant coating
• Insulation Material: Silica fiber
• Heater Type: Stainless steel heating pipe / Nickel‑cobalt alloy wire
• Air Circulation: Dual‑channel forced convection, rear air duct, swirl air supply
• Air Vent: Ø28 mm × 2 (top)
• Sensor Type: Pt100
• Safety Device: Anti‑temperature rise device (over‑temperature protection)
• Fan Type: Constant speed fan
• Internal Dimensions: 600 × 500 × 750 mm
• External Dimensions: 735 × 625 × 1220 mm
• Package Dimensions: 898 × 814 × 1347 mm
• Power Supply (50/60 Hz): AC220V / 13.6A
• Partition Load Capacity: 15 kg
• Partition Layers / Standard Layers: 17 / 2 layers
• Partition Spacing: 150 mm
• Net / Gross Weight (kg): 84 / 100
