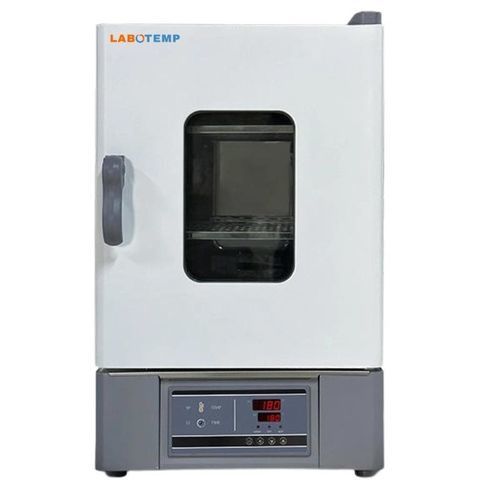

Curing oven FOV-15

heatingsterilizationdrying

Overview
Labotemp Natural convection drying oven FOV-15 is a laboratory drying oven engineered for controlled heating, drying and thermal processing in research laboratories, pharmaceutical facilities, quality control and industrial testing. The 85 L chamber and temperature range RT+10 to 300 °C support glassware drying, sample preparation, sterilization and material conditioning where stable temperature control is required.

Temperature control and safety
The unit features a dual PID digital controller and Pt100 sensor for accurate temperature regulation and repeatable results. Practical functions include fixed-value control, timer (0–9999 min), auto-resume memory, program storage and optional program mode. Over-temperature protection, temperature-limit alarms and an anti-rise safety device enhance operational safety.

Key benefits

• Uniform heating: natural convection design optimized for consistent temperature distribution.
• Accurate control: dual PID and Pt100 sensor for tight thermal stability.
• Laboratory-grade construction: mirror stainless steel interior and chemical-resistant exterior for easy cleaning and durability.

Features

• Auto-resume memory after power failure
• Wide temperature range: RT+10 °C to 300 °C
• High-precision control with dual PID digital display
• Mirror stainless steel interior for easy cleaning
• Cold-rolled steel exterior with chemical-resistant coating
• Finned stainless steel heating tube for efficient heat transfer
• Alumina silicate fiber insulation to reduce heat loss
• Optional program mode: up to 50 programs × 50 steps
• Bias correction, key lock and power-failure memory functions
• Pt100 temperature sensor

Applications

• Drying, heating, sterilizing and curing of samples in laboratories and R&D facilities
• Glassware drying and moisture removal
• Thermal testing and sample conditioning for QA/QC

Technical specifications

• Maximum temperature: 300 °C
• Chamber volume: 85 L
• Power rating: 2.0 kW
• Temperature distribution accuracy: ±3.0 %
• Interior material: mirror stainless steel
• Exterior material: cold-rolled steel with chemical-resistant coating
• Insulation material: alumina silicate fiber
• Heating element: finned stainless steel heating tube
• Air vent (controller): Ø28 mm × 1 (top)
• Temperature control method: dual PID digital display
• Timer: 0–9999 minutes
• Program function: single-stage temperature control, 50 programs × 50 steps
• Sensor: Pt100
• Safety device: anti-rise device
• Internal dimensions: 450 × 450 × 450 mm
• External dimensions: 567 × 640 × 853 mm
• Package dimensions: 692 × 718 × 980 mm
• Temperature resolution: 0.1 °C
• Partition load capacity: 15 kg
• Number of layers: 8 / 2
• Partition spacing: 40 mm
• Power supply: AC 220 V 50–60 Hz / 8.2 A
• Temperature fluctuation: ±1.0 °C
• Net / gross weight: 50 / 58 kg
