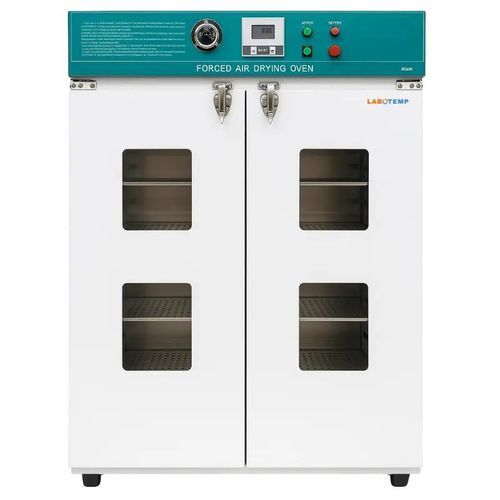

Drying oven FOV-23

curingheatingfor the pharmaceutical industry

Product Overview
Labotemp Industrial Drying Oven FOV-23 is a high-capacity fan-forced hot air oven offering controlled heating for large-scale drying, curing, baking and thermal processing. The oven operates from RT+10°C to 250°C with ±1°C control accuracy and a 3070 L chamber suitable for heavy-duty batch processing and large components in automotive, aerospace, electronics, chemical processing and materials engineering settings.

Key Advantages

• Large capacity: 3070 L chamber accommodates high-volume batches and oversized components.
• Precise temperature control: PID programmable LCD controller ensures ±1°C accuracy and multi-step programming.
• Uniform heating: 18 kW fan-forced heating and designed airflow deliver consistent temperature distribution.
• Durable construction: iron inner chamber with rock wool board insulation for thermal efficiency and stable long cycles.
• Safety and long-duration operation: overheat cut-off and programmable timer (0–9999 min) for secure continuous processing.

Features

• 3070 L chamber volume for large-batch industrial use.
• Fan-forced heating, temperature range RT+10–250°C, accuracy ±1°C.
• PID intelligent / programmable LCD controller with multi-step program capability.
• Iron inner chamber insulated with rock wool board for thermal retention and durability.
• 18 kW heating system for rapid heat-up and uniform temperature across the chamber.
• Safety features: overheat cut-off and programmable timer 0–9999 minutes.

Applications

• Large-volume drying, curing, baking and thermal treatment in industrial manufacturing processes.
• Suitable for processing large components, bulk materials and high-load batches in automotive, aerospace, electronics and chemical production lines.
• Used where uniform heating and high-capacity chamber are required for quality and throughput.

Technical Specifications

• Model NO.: FOV-23
• Heating Method: Fan-forced
• Temperature Range: RT+10–250°C
• Accuracy: ±1°C
• Uniformity: ±3%
• Inner Chamber Material: Iron
• Insulation Material: Rock wool board
• Heater Power: 18 kW
• Controller Type: PID programmable (LCD)
• Display: LCD
• Timer Range: 0–9999 minutes
• Safety Feature: Overheat cut-off
• Chamber Dimensions (mm): 1600 × 1200 × 1600
• Chamber Volume: 3070 L
• Power Supply: 380V
